Components [09/2024 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

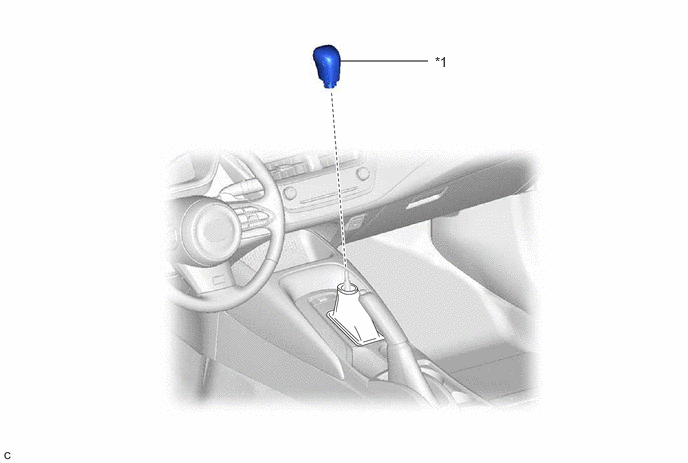

Fig 1: Shift Lever Knob Replacement Components
GTY1251253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 SHIFT LEVER KNOB SUB-ASSEMBLY - -
