Components [09/2024 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Park And Neutral Position Switch Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DECK BOARD ASSEMBLY	*2	SPARE WHEEL CUSHION

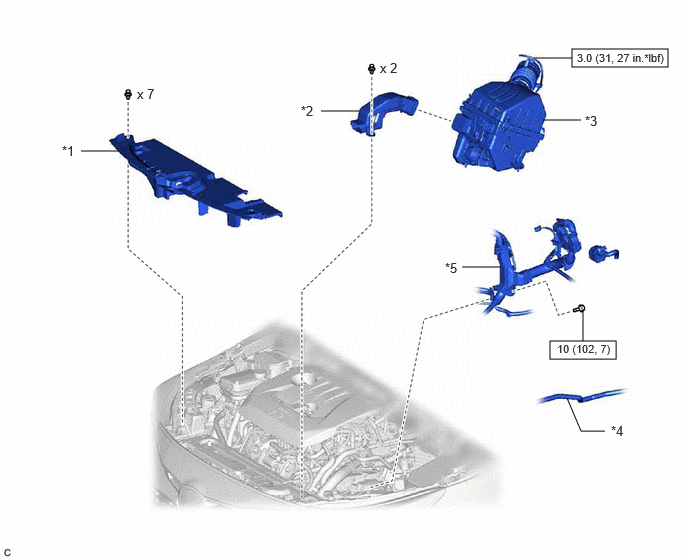

Fig 2: Park And Neutral Position Switch Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	RADIATOR SUPPORT OPENING COVER	*2	INLET NO. 1 AIR CLEANER
*3	AIR CLEANER WITH AIR CLEANER HOSE	*4	FUEL VAPOR FEED HOSE
*5	WIRE HARNESS	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

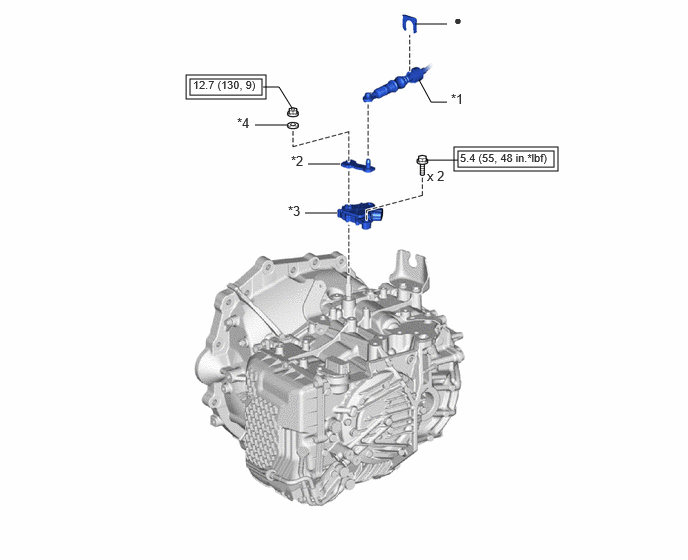

Fig 3: Park And Neutral Position Switch Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	TRANSMISSION CONTROL CABLE ASSEMBLY	*2	TRANSMISSION CONTROL SHAFT LEVER
*3	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*4	WASHER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
