Components [09/2024 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

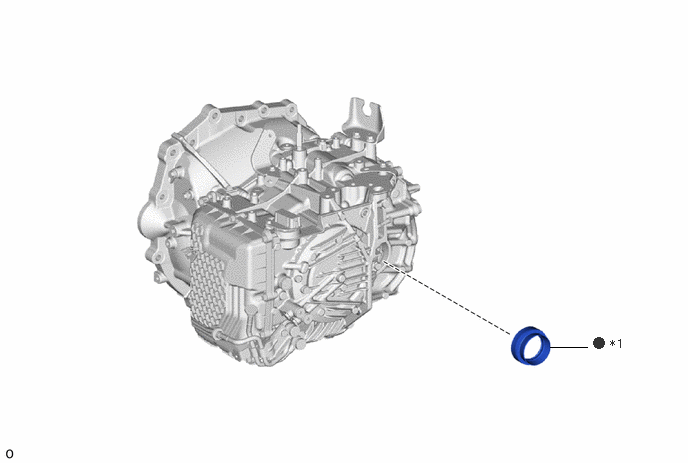

Fig 1: Differential Oil Seal (For LH Side) Replacement Components
GTY1251123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DRIVE SHAFT OIL SEAL LH - -
• Non-reusable part - -
