Components [09/2024 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

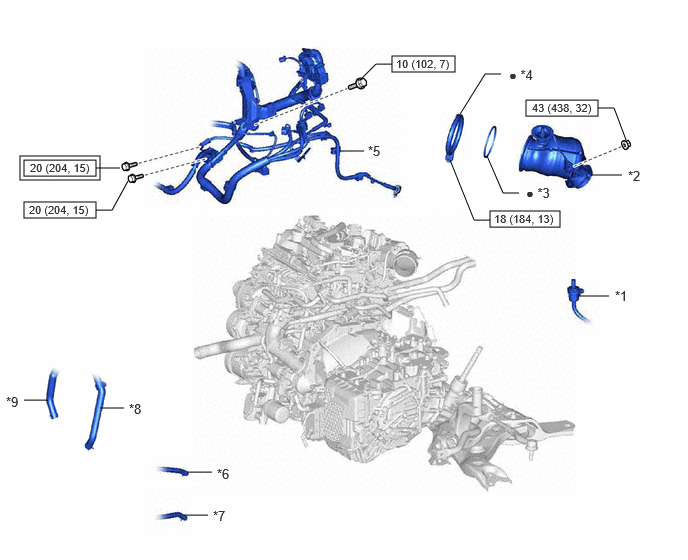

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 6)
GTY1252339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION BREATHER HOSE SUB-ASSEMBLY *2 EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY
*3 OUTLET TURBINE ELBOW GASKET *4 EXHAUST PIPE CLAMP
*5 ENGINE WIRE *6 OUTLET NO. 1 OIL COOLER HOSE
*7 NO. 1 TRANSMISSION OIL COOLER HOSE *8 NO. 4 WATER BY-PASS HOSE
*9 NO. 5 WATER BY-PASS HOSE - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -

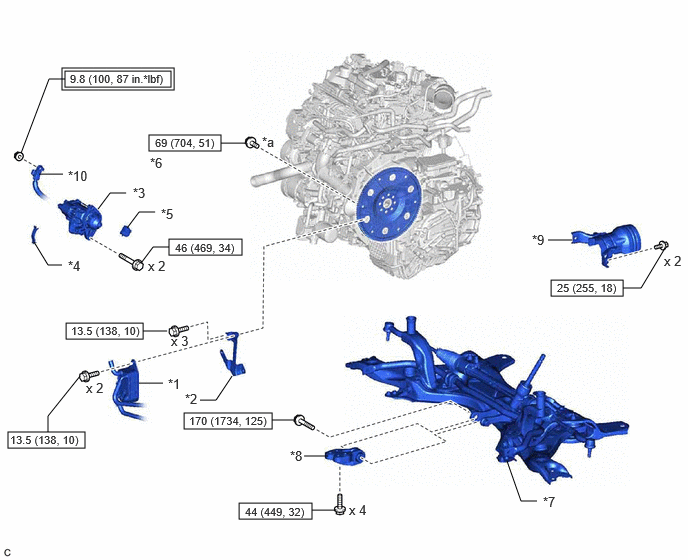

Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 6)
GTY1251602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION OIL COOLER *2 NO. 2 TRANSMISSION OIL COOLER BRACKET
*3 STARTER ASSEMBLY *4 FLYWHEEL HOUSING SIDE COVER
*5 FLYWHEEL HOUSING UNDER COVER *6 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
*7 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY *8 NO. 2 ENGINE MOVING CONTROL ROD
*9 PROPELLER SHAFT HEAT INSULATOR *10 ENGINE WIRE
*a BLACK COLOR: x 1
SILVER COLOR: x 5		 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque

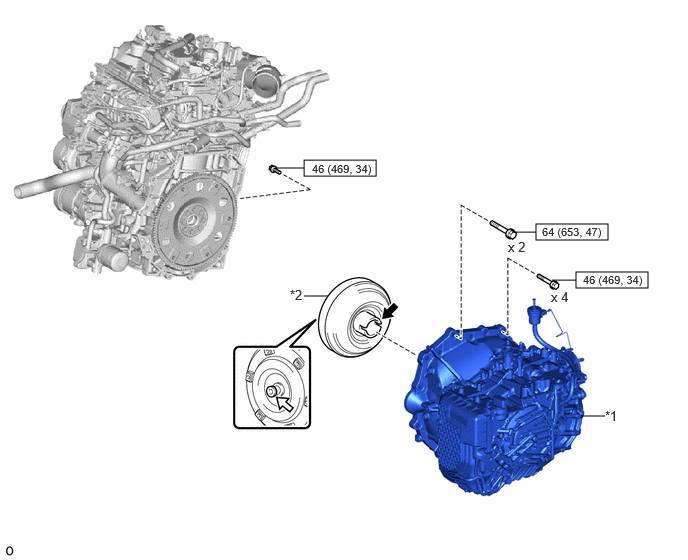

Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 6)
GTY1250958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSAXLE ASSEMBLY *2 TORQUE CONVERTER ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque MP grease
Toyota Genuine Clutch Spline Grease or equivalent - -

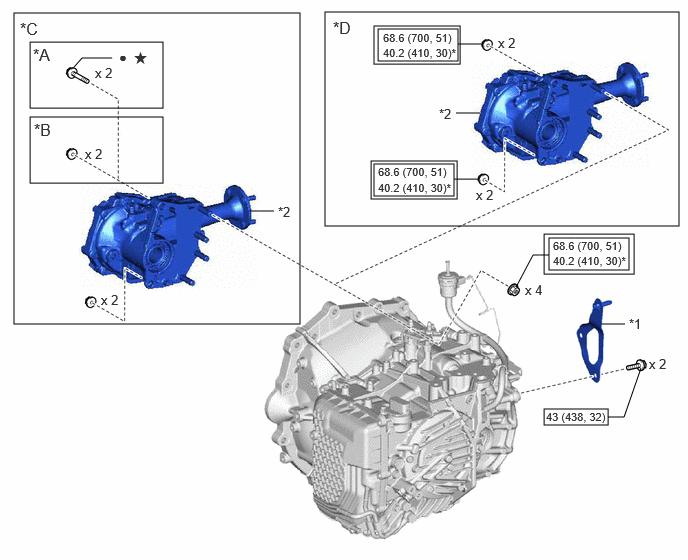

Fig 4: Automatic Transaxle Assembly Replacement Components With Torque Specifications (4 Of 6)
GTY1251961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*C for Removal *D for Installation
*1 EXHAUST PIPE SUPPORT STAY *2 TRANSFER ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
* For use with SST and union nut wrench • Non-reusable part
* Precoated part - -

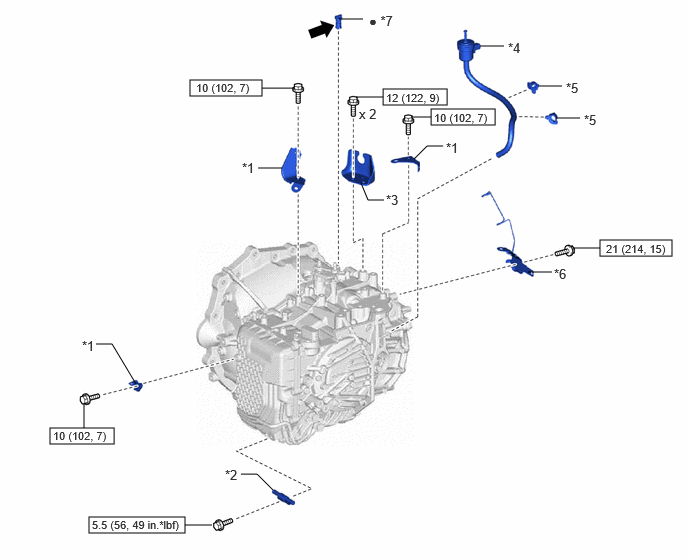

Fig 5: Automatic Transaxle Assembly Replacement Components With Torque Specifications (5 Of 6)
GTY1250989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 WIRE HARNESS CLAMP BRACKET *2 NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE
*3 NO. 1 TRANSMISSION CONTROL CABLE BRACKET *4 TRANSMISSION BREATHER HOSE SUB-ASSEMBLY
*5 WIRING HARNESS CLAMP *6 EXHAUST SENSOR CLAMP BRACKET
*7 TRANSMISSION CASE PLUG ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -

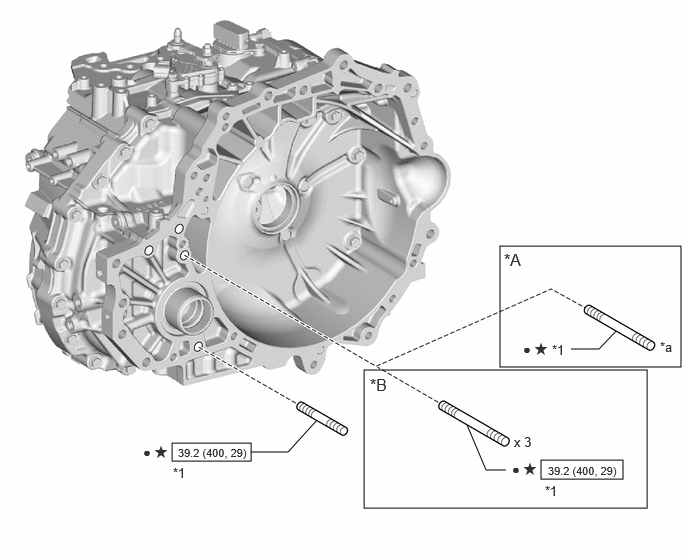

Fig 6: Automatic Transaxle Assembly Replacement Components With Torque Specifications (6 Of 6)
GTY1252616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Removal *B for Installation
*1 TRANSFER AND TRANSAXLE SETTING STUD BOLT - -
*a Type A: x 1
Type B: x 3		 - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -
