Removal [09/2024 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FRONT BUMPER ASSEMBLY
Refer to REMOVAL [09/2024 - ]

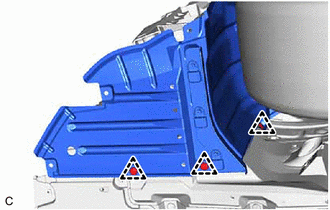

- SEPARATE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
- Remove the 3 clips to separate the front fender splash shield sub-assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

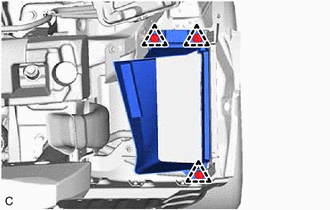

- REMOVE TRANSMISSION OIL COOLER AIR DUCT
- Remove the 3 clips and transmission oil cooler air duct from the oil cooler assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

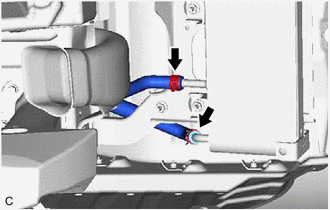

- DISCONNECT NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY
- Slide the 2 clips and disconnect the No. 1 transmission oil cooler hose assembly from the oil cooler assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Use a container to catch any automatic transaxle fluid which flows out.

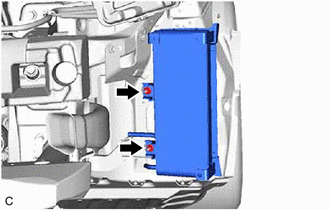

- REMOVE OIL COOLER ASSEMBLY
- Remove the 2 nuts and oil cooler assembly from the oil cooler bracket.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Use a container to catch any automatic transaxle fluid which flows out.
- REMOVE OUTLET TRANSMISSION OIL COOLER AIR DUCT
- Remove the 3 clips and outlet transmission oil cooler air duct from the oil cooler assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

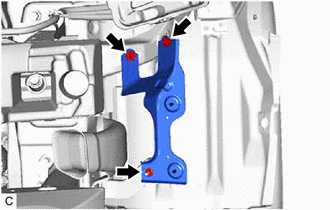

- REMOVE OIL COOLER BRACKET
HINT:
Perform this procedure only when replacement of the oil cooler bracket is necessary.
- Remove the 2 bolts, nut and oil cooler bracket from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

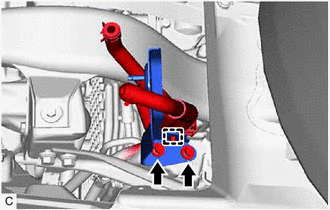

- REMOVE OIL COOLER BRACKET
HINT:
Perform this procedure only when replacement of the oil cooler bracket is necessary.
- Disconnect the clamp from the oil cooler bracket.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 bolts and oil cooler bracket from the vehicle body.
