Components [09/2024 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

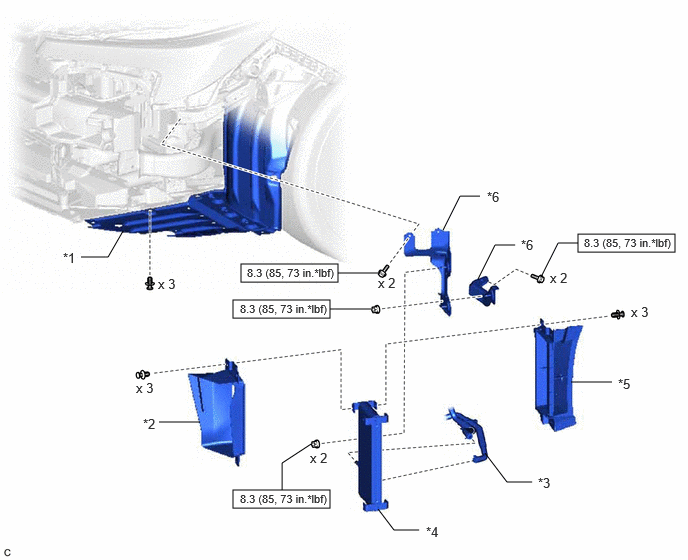

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH | *2 | TRANSMISSION OIL COOLER AIR DUCT |
| *3 | NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY | *4 | OIL COOLER ASSEMBLY |
| *5 | OUTLET TRANSMISSION OIL COOLER AIR DUCT | *6 | OIL COOLER BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
