Adjustment [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

SECURE VEHICLE

Fully apply the parking brake and chock a wheel.

WARNING:

Make sure to apply the parking brake and chock a wheel before performing this procedure.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [01/2019 - 09/2022] , or refer to REMOVAL [09/2022 - 11/2022]

ADJUST SHIFT LEVER POSITION

Move the shift lever to N.

Disconnect the floor shift transmission control select cable from the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, pull out the stopper of the floor shift transmission control select cable.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Stopper

NOTE:

Do not remove the stopper. If it is removed, reinstall it to its original position.

Turn the nut of the floor shift transmission control select cable approximately 180° counterclockwise and, while holding the nut in that position, disconnect the floor shift transmission control select cable from the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Stopper
*b	Nut
*c	Turn approximately 180°

NOTE:

Do not turn the nut excessively as the internal spring may come off and the floor shift transmission control select cable will not be reusable.
Do not forcibly pull the floor shift transmission control select cable into the cabin.

Push the 2 claws together at the top of the lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to push up the lock piece.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lock Piece	*b	Bottom View
*c	Push	*d	Push up

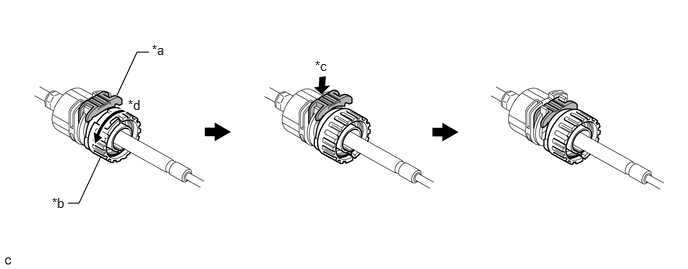

Turn the nut of the floor shift transmission control select cable approximately 180° counterclockwise. While holding the nut in place, push in the stopper until it clicks twice.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Stopper	*b	Nut
*c	Push in	*d	Turn approximately 180°

HINT:

If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

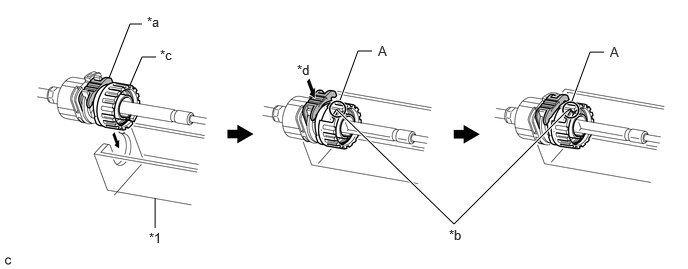

Connect the floor shift transmission control select cable to the transmission floor shift assembly. Check that the spring is positioned at (A) and push in the stopper.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Transmission Floor Shift Assembly	-	-
*a	Stopper	*b	Spring
*c	Nut	*d	Push in

NOTE:

If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.
Make sure that the floor shift transmission control select cable is securely locked.
Do not forcibly pull the floor shift transmission control select cable into the cabin.

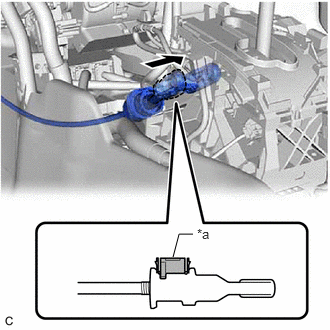

Confirm that the shift lever is in N, and then install the end of the floor shift transmission control select cable to the transmission floor shift assembly.

*a	Lock Piece

NOTE:

Securely install the end of the floor shift transmission control select cable to the transmission floor shift assembly.
Install the end of the floor shift transmission control select cable so that its adjustment lock section is on the driver side.

Push the lock piece into the adjuster case.

*a	Lock Piece
*b	Adjuster Case
*c	Push in

NOTE:

Check that the park/neutral position switch assembly and shift lever are in N.
Securely push in the lock piece until the 2 claws are engaged.

When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

*1	Floor Shift Transmission Control Select Cable
*a	Lever Shaft

When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or floor shift transmission control select cable forward or backward.

INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [01/2019 - 09/2022] , or refer to INSTALLATION [09/2022 - 11/2022]
INSPECT SHIFT LEVER POSITION
See step 2
