Removal [01/2019 - 11/2022]: Procedure

1. Fully apply the parking brake and chock a wheel.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.
   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Be careful not to damage the shift lock release button cover and position indicator housing assembly.

See step  1

Refer to REMOVAL [01/2019 - 09/2022] , or refer to REMOVAL [09/2022 - 11/2022]

1. Move the shift lever to N.

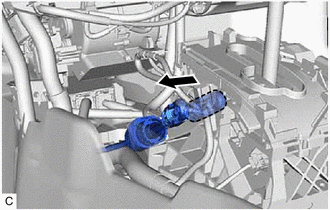

2. Disconnect the floor shift transmission control select cable from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

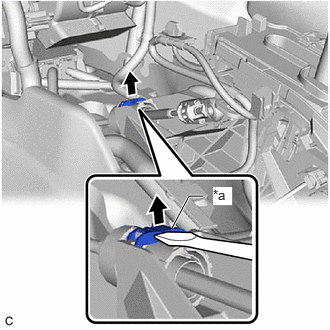

3. Using a screwdriver, pull out the stopper of the floor shift transmission control select cable.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Stopper

   NOTE:

   Do not remove the stopper. If it is removed, reinstall it to its original position.

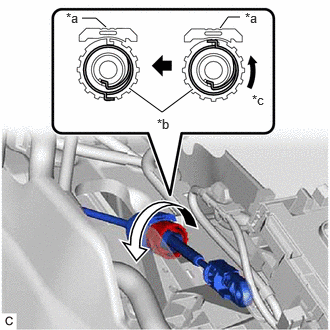

4. Turn the nut of the floor shift transmission control select cable approximately 180° counterclockwise and, while holding the nut in that position, disconnect the floor shift transmission control select cable from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Stopper
   *b	Nut
   *c	Turn approximately 180°

   NOTE:

   • Do not turn the nut excessively as the internal spring may come off and the floor shift transmission control select cable will not be reusable.
   • Do not forcibly pull the floor shift transmission control select cable into the cabin.

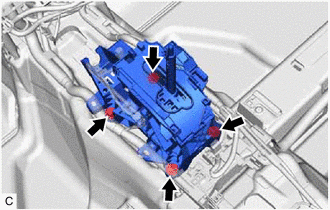

1. Remove the 4 bolts and disconnect the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

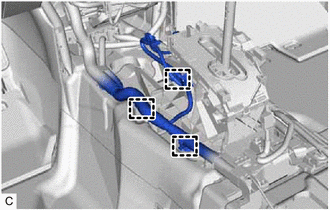

2. Disengage the 3 clamps to disconnect the wire harness from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

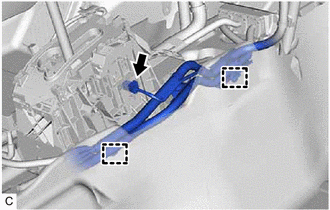

3. Disconnect the shift lock control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Disengage the 2 clamps to disconnect the wire harness from the transmission floor shift assembly.
5. Remove the transmission floor shift assembly.
