Disassembly [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

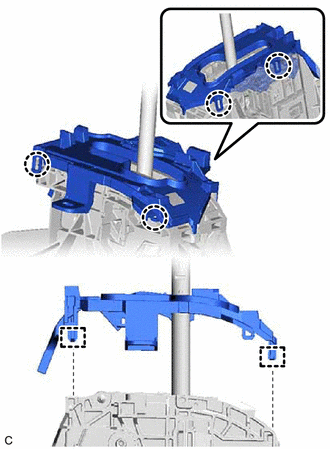

    1. Disengage the 4 claws and 2 guides to remove the shift lever housing bracket sub-assembly from the shift lock control unit assembly.
      GTY842356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the shift lever housing bracket sub-assembly.
