Removal [01/2019 - 11/2022]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

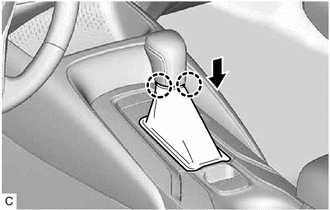

- Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.

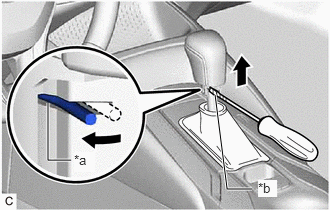

- Using a screwdriver with its tip wrapped with protective tape, expand the LH side clip and pull out the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.
*a Clip *b Protective Tape NOTE:Be careful not to damage the shift lever knob sub-assembly.
- Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.
