Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
- |
- |

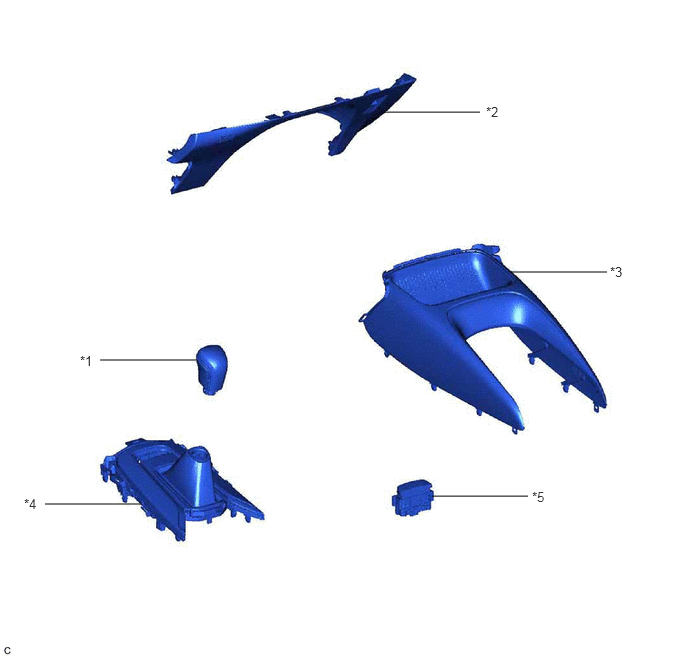

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
SHIFT LEVER KNOB SUB-ASSEMBLY |
*2 |
LOWER CENTER INSTRUMENT PANEL FINISH PANEL |
| *3 |
FRONT CONSOLE UPPER PANEL GARNISH |
*4 |
POSITION INDICATOR HOUSING ASSEMBLY |
| *5 |
COMBINATION SWITCH ASSEMBLY |
- |
- |
