Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

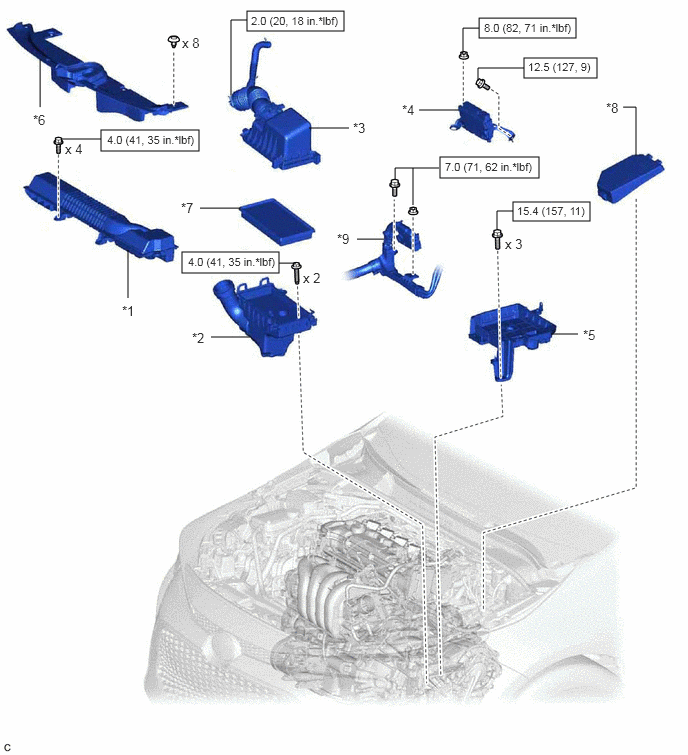

Fig 1: Park And Neutral Position Switch Replacement Components With Torque Specifications [01/2019 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INLET NO. 1 AIR CLEANER | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *4 | ECM |
| *5 | BATTERY CLAMP SUB-ASSEMBLY | *6 | RADIATOR SUPPORT OPENING COVER |
| *7 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *8 | NO. 1 RELAY BLOCK COVER |
| *9 | ENGINE WIRE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

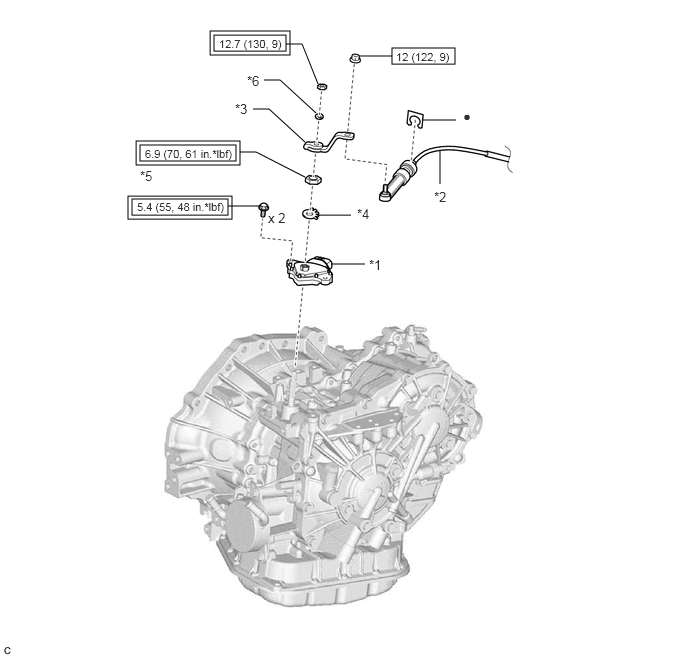

Fig 2: Park And Neutral Position Switch Replacement Components With Torque Specifications [01/2019 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE |
| *3 | CONTROL SHAFT LEVER | *4 | LOCK PLATE |
| *5 | LOCK NUT | *6 | WASHER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
