Components [03/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

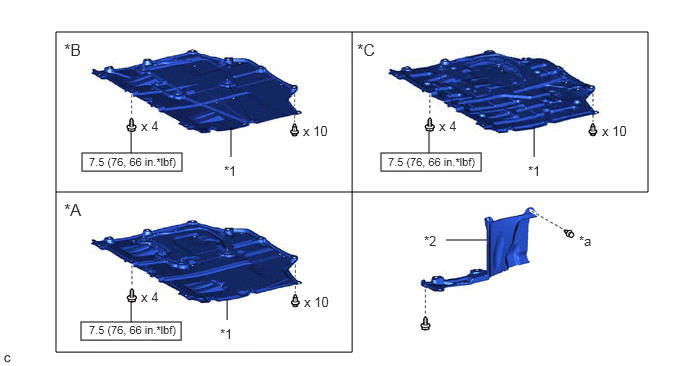

Fig 1: Oil Pan Replacement Components With Torque Specifications [03/2019 - 11/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*C	Type C	-	-
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	*2	REAR ENGINE UNDER COVER LH
*a	Type A: x 4 Type B: x 5	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

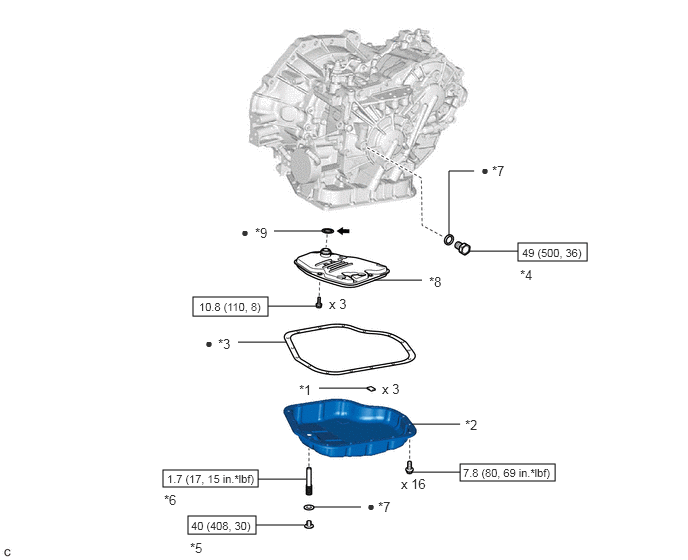

Fig 2: Oil Pan Replacement Components With Torque Specifications [03/2019 - 11/2022] (2 Of 2)

Callout	Description	Callout	Description
*1	OIL CLEANER (CVT) MAGNET	*2	TRANSAXLE OIL (CVT) PAN SUB-ASSEMBLY
*3	TRANSAXLE OIL PAN (CVT) GASKET	*4	REFILL PLUG
*5	OVERFLOW PLUG	*6	OVERFLOW (CVT) TUBE
*7	GASKET	*8	OIL STRAINER ASSEMBLY
*9	O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine CVT fluid FE	-	-
