Replacement [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [01/2019 - 11/2022]

  2. REMOVE FRONT DRIVE SHAFT OIL SEAL LH
    1. Using SST, remove the front drive shaft oil seal LH from the continuously variable transaxle assembly.

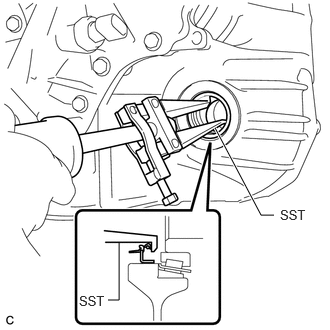

      GTY447031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Do not damage the continuously variable transaxle assembly.

  3. REMOVE FRONT DRIVE SHAFT OIL SEAL RH
    1. Using SST, remove the front drive shaft oil seal RH from the continuously variable transaxle assembly.

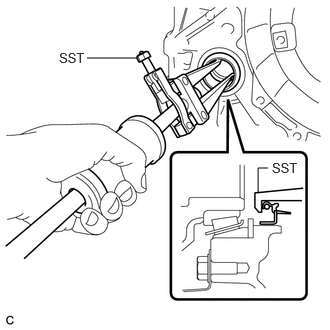

      GTY443588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Do not damage the continuously variable transaxle assembly.

  4. INSTALL FRONT DRIVE SHAFT OIL SEAL RH
    1. Apply MP grease to the lip of a new front drive shaft oil seal RH.
    2. Using SST and a hammer, install the front drive shaft oil seal RH to the continuously variable transaxle assembly.

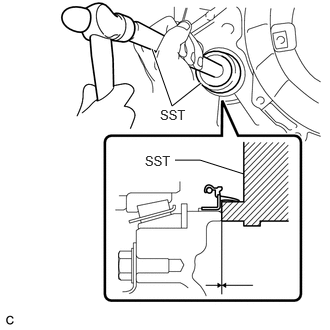

      GTY862564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09554-14010
      • SST: 09950-70010
        1. 09951-07100

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Be sure to install the front drive shaft oil seal RH in the correct direction.
      • Make sure to install the front drive shaft oil seal RH as specified, otherwise malfunctions such as a fluid leak will occur.
      • Do not damage the lip of the front drive shaft oil seal RH.
  5. INSTALL FRONT DRIVE SHAFT OIL SEAL LH
    1. Apply MP grease to the lip of a new front drive shaft oil seal LH.
    2. Using SST and a hammer, install the front drive shaft oil seal LH to the continuously variable transaxle assembly.

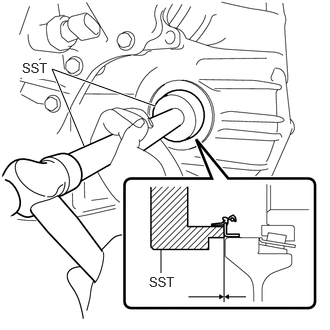

      GTY863363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09387-00010
      • SST: 09950-70010
        1. 09951-07150

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Be sure to install the front drive shaft oil seal LH in the correct direction.
      • Make sure to install the front drive shaft oil seal LH as specified, otherwise malfunctions such as a fluid leak will occur.
      • Do not damage the lip of the front drive shaft oil seal LH.
  6. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Refer to INSTALLATION [09/2022 - 11/2022]
