Components [03/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Continuously Variable Transaxle Fluid Replacement Components With Torque Specifications [03/2019 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | Type C | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER LH |
| *a | Type A: x 4 Type B: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

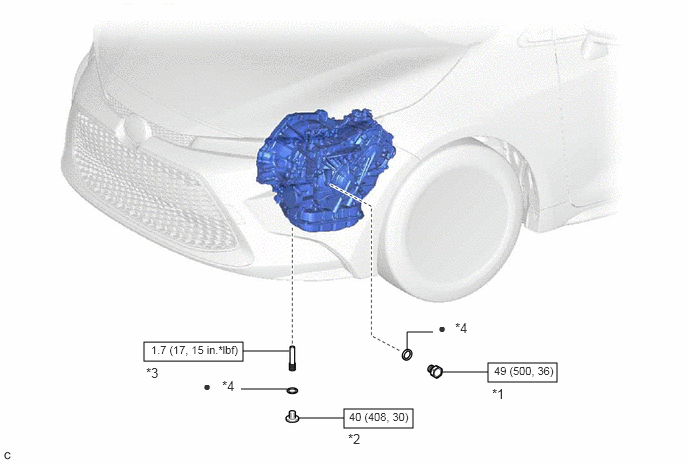

Fig 2: Continuously Variable Transaxle Fluid Replacement Components With Torque Specifications [03/2019 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REFILL PLUG | *2 | OVERFLOW PLUG |
| *3 | OVERFLOW (CVT) TUBE | *4 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
