Components [09/2022 - 11/2022]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

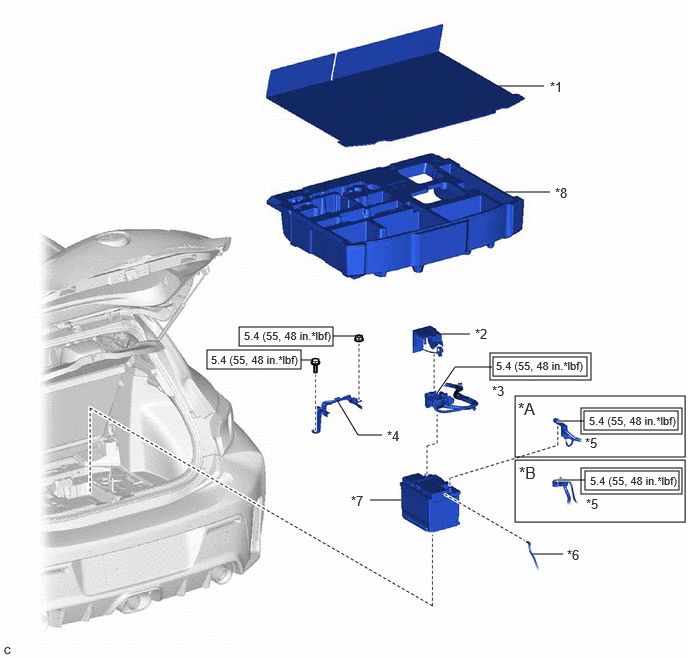

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | *B | for Type B |
| *1 | DECK BOARD ASSEMBLY | *2 | BATTERY TERMINAL CONNECTOR COVER |
| *3 | POSITIVE BATTERY TERMINAL | *4 | BATTERY CLAMP SUB-ASSEMBLY |
| *5 | NEGATIVE BATTERY TERMINAL | *6 | BATTERY HOSE |
| *7 | BATTERY | *8 | SPARE WHEEL CUSHION |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
