Components [09/2024 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

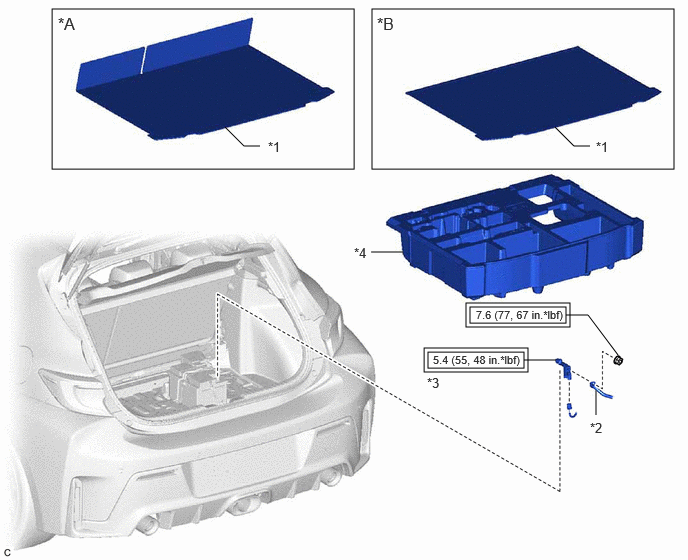

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Rear Seat Assembly | *B | w/o Rear Seat Assembly |
| *1 | DECK BOARD ASSEMBLY | *2 | EARTH WIRE |
| *3 | BATTERY STATE SENSOR ASSEMBLY | *4 | SPARE WHEEL CUSHION |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
