Parts Location [09/2022 - 11/2022]: Illustration
WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
| *A | w/ Accessory Light | *B | w/ Side Turn Signal Light |
| *C | for CVT | *D | for Manual Transaxle |
| *E | w/ Automatic High Beam System | - | - |

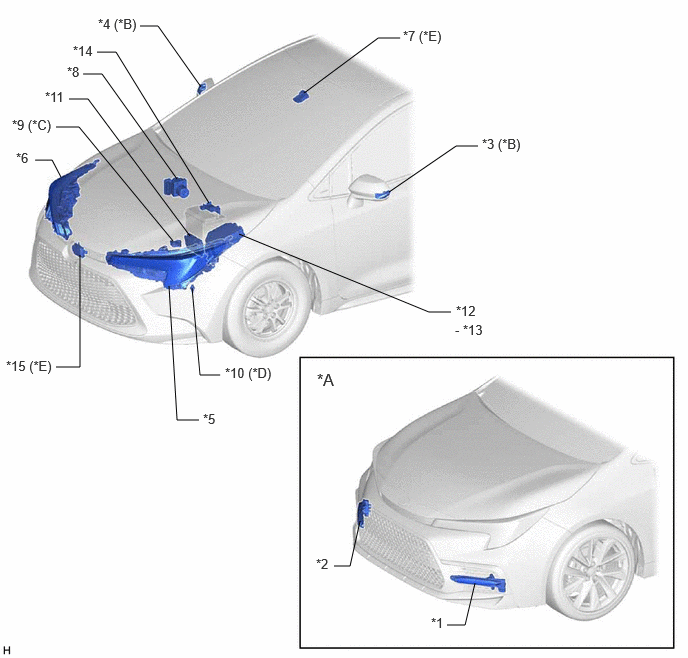

| *1 | LED ILLUMINATION LIGHT LH | *2 | LED ILLUMINATION LIGHT RH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | HEADLIGHT ASSEMBLY LH | *6 | HEADLIGHT ASSEMBLY RH |
| *7 | FORWARD RECOGNITION CAMERA | *8 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *9 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *10 | BACK-UP LIGHT SWITCH ASSEMBLY |
| *11 | ECM | *12 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP HI FUSE - H-LP LH FUSE - H-LP RH FUSE |
| *13 | NO. 1 INTEGRATION RELAY - DIM RELAY - H-LP LH RELAY - H-LP RH RELAY |
*14 | FUSIBLE LINK BLOCK ASSEMBLY - J/B-AM FUSE |
| *15 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |

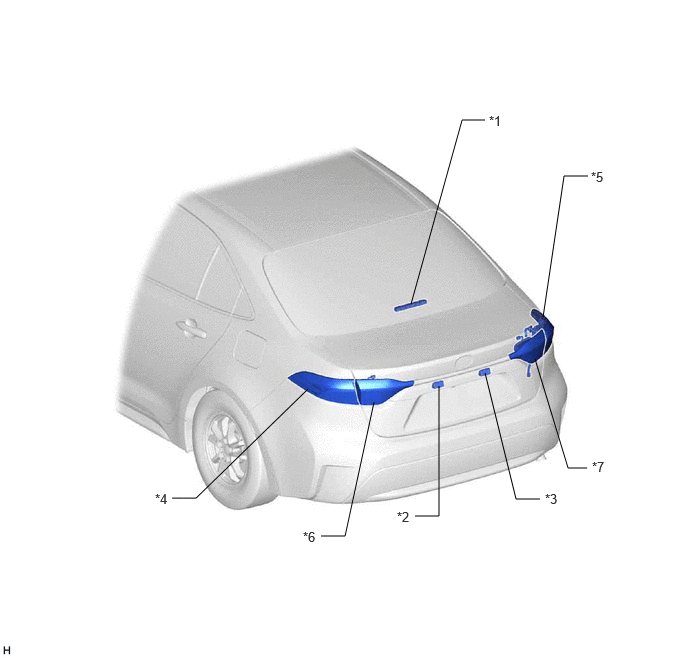

| *1 | CENTER STOP LIGHT SET | *2 | LICENSE PLATE LIGHT ASSEMBLY LH |
| *3 | LICENSE PLATE LIGHT ASSEMBLY RH | *4 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH - REAR COMBINATION LIGHT CORD LH - REAR COMBINATION LIGHT LED - STOP LIGHT LED (for LED Type Side Marker Light) |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH - REAR COMBINATION LIGHT CORD RH - REAR COMBINATION LIGHT LED - STOP LIGHT LED (for LED Type Side Marker Light) |
*6 | REAR LIGHT ASSEMBLY LH - REAR LIGHT LENS AND BODY LH - REAR LIGHT SOCKET AND WIRE LH |
| *7 | REAR LIGHT ASSEMBLY RH - REAR LIGHT LENS AND BODY RH - REAR LIGHT SOCKET AND WIRE RH |
- | - |
| *A | w/ Automatic High Beam System | *B | w/o Electric Parking Brake System |
| *C | w/ Automatic Light Control | - | - |

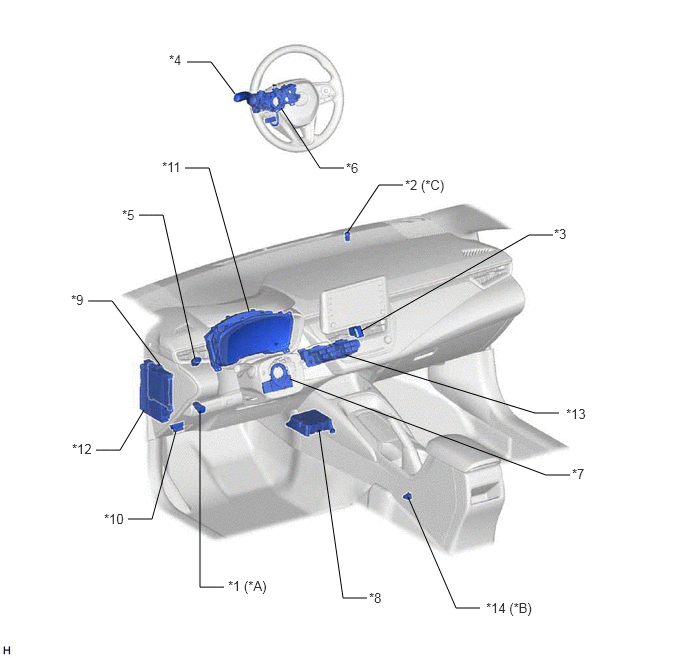

| *1 | AUTO HIGH BEAM SWITCH | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *4 | TURN SIGNAL SWITCH |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | STEERING WHEEL SWITCH HOUSING |
| *7 | STEERING SENSOR | *8 | AIRBAG SENSOR ASSEMBLY |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | DLC3 |
| *11 | COMBINATION METER ASSEMBLY | *12 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL RELAY - BKUP LP RELAY - TAIL FUSE - BKUP LP FUSE - ECU-DCC NO. 2 FUSE - HAZ FUSE - METER-IG2 FUSE - STOP FUSE - ECU-ACC FUSE (for CVT) |
| *13 | NO. 3 RELAY BLOCK ASSEMBLY - FR FOG RELAY (w/ Front Fog Light) |
*14 | PARKING BRAKE SWITCH ASSEMBLY |
