Parts Location [01/2019 - 03/2019]: Illustration
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

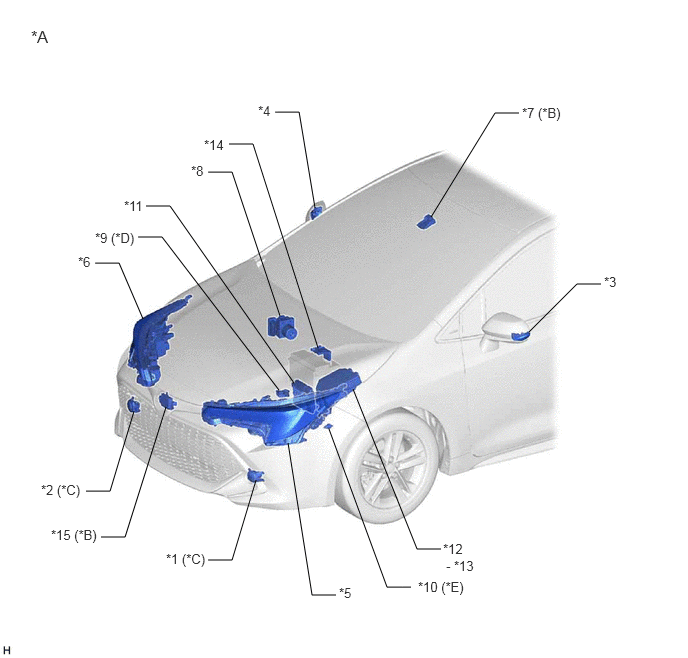

| *A | for Hatchback | *B | w/ Automatic High Beam System |
| *C | w/ Front Fog Light | *D | for CVT |
| *E | for Manual Transaxle | - | - |
| *1 | FOG LIGHT ASSEMBLY LH | *2 | FOG LIGHT ASSEMBLY RH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | HEADLIGHT ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH |
*6 | HEADLIGHT ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH |
| *7 | FORWARD RECOGNITION CAMERA | *8 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *9 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *10 | BACK-UP LIGHT SWITCH ASSEMBLY |
| *11 | ECM | *12 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - FOG FR FUSE (w/ Front Fog Light) - H-LP HI FUSE - H-LP LH FUSE - H-LP RH FUSE |
| *13 | NO. 1 INTEGRATION RELAY - DIM RELAY - H-LP LH RELAY - H-LP RH RELAY |
*14 | FUSIBLE LINK BLOCK ASSEMBLY - J/B-AM FUSE |
| *15 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |

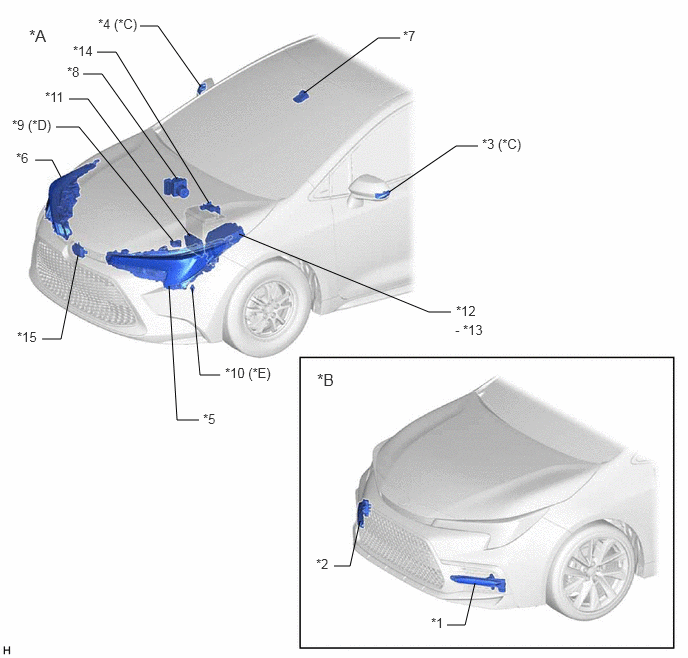

| *A | for Sedan | *B | w/ Accessory Light |
| *C | w/ Side Turn Signal Light | *D | for CVT |
| *E | for Manual Transaxle | - | - |
| *1 | LED ILLUMINATION LIGHT LH | *2 | LED ILLUMINATION LIGHT RH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | HEADLIGHT ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH |
*6 | HEADLIGHT ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH |
| *7 | FORWARD RECOGNITION CAMERA | *8 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *9 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *10 | BACK-UP LIGHT SWITCH ASSEMBLY |
| *11 | ECM | *12 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP HI FUSE - H-LP LH FUSE - H-LP RH FUSE |
| *13 | NO. 1 INTEGRATION RELAY - DIM RELAY - H-LP LH RELAY - H-LP RH RELAY |
*14 | FUSIBLE LINK BLOCK ASSEMBLY - J/B-AM FUSE |
| *15 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |

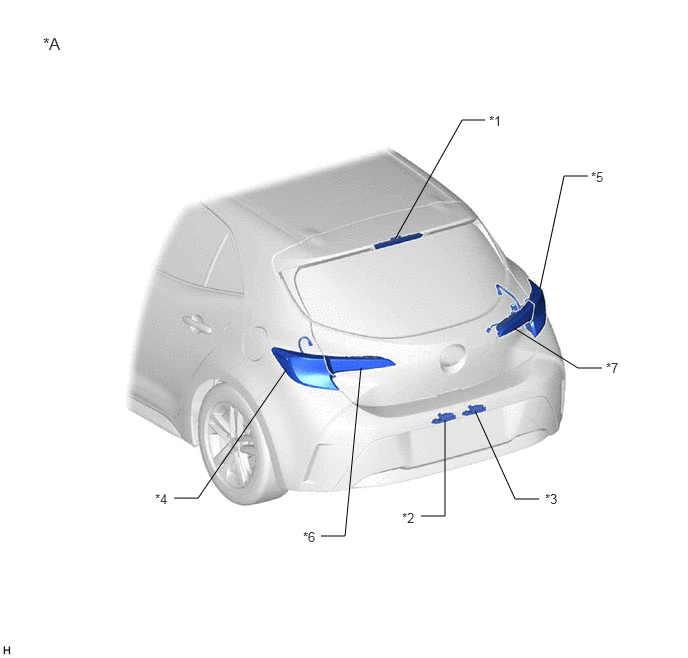

| *A | for Hatchback | - | - |
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | LICENSE PLATE LIGHT ASSEMBLY LH |
| *3 | LICENSE PLATE LIGHT ASSEMBLY RH | *4 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH - REAR COMBINATION LIGHT CORD LH - REAR COMBINATION LIGHT LED - REAR COMBINATION LIGHT LED LH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH - REAR COMBINATION LIGHT CORD RH - REAR COMBINATION LIGHT LED - REAR COMBINATION LIGHT LED RH |
*6 | REAR LIGHT ASSEMBLY LH - REAR LIGHT LENS AND BODY LH - REAR LIGHT SOCKET AND WIRE LH - REAR LIGHT LED |
| *7 | REAR LIGHT ASSEMBLY RH - REAR LIGHT LENS AND BODY RH - REAR LIGHT SOCKET AND WIRE RH - REAR LIGHT LED |
- | - |

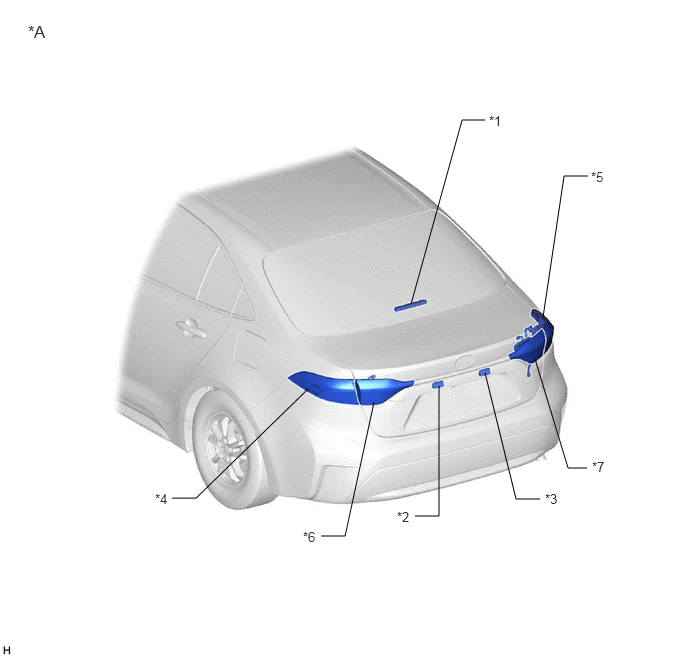

| *A | for Sedan | - | - |
| *1 | CENTER STOP LIGHT SET | *2 | LICENSE PLATE LIGHT ASSEMBLY LH |
| *3 | LICENSE PLATE LIGHT ASSEMBLY RH | *4 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH - REAR COMBINATION LIGHT CORD LH - REAR COMBINATION LIGHT LED - STOP LIGHT LED (for LED Type Side Marker Light) |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH - REAR COMBINATION LIGHT CORD RH - REAR COMBINATION LIGHT LED - STOP LIGHT LED (for LED Type Side Marker Light) |
*6 | REAR LIGHT ASSEMBLY LH - REAR LIGHT LENS AND BODY LH - REAR LIGHT SOCKET AND WIRE LH |
| *7 | REAR LIGHT ASSEMBLY RH - REAR LIGHT LENS AND BODY RH - REAR LIGHT SOCKET AND WIRE RH |
- | - |

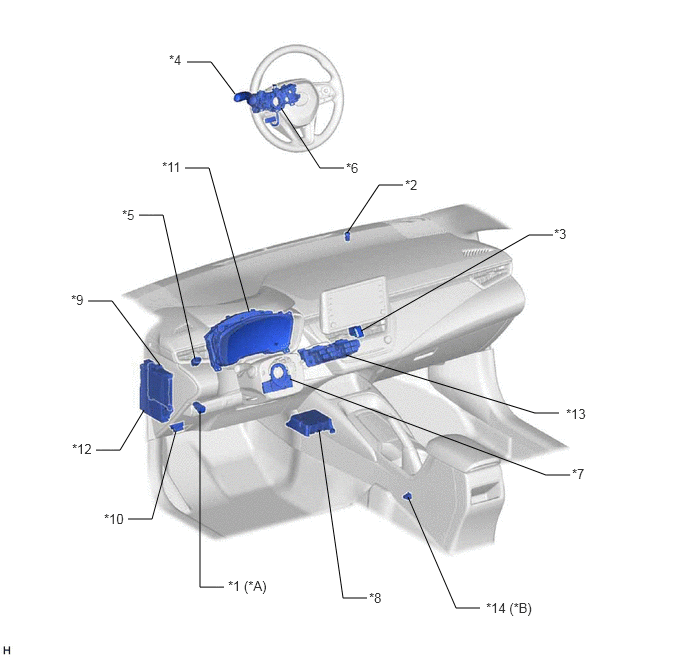

| *A | w/ Automatic High Beam System | *B | w/o Electric Parking Brake System |
| *1 | AUTO HIGH BEAM SWITCH | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *4 | TURN SIGNAL SWITCH |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | STEERING WHEEL SWITCH HOUSING |
| *7 | STEERING SENSOR | *8 | AIRBAG SENSOR ASSEMBLY |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | DLC3 |
| *11 | COMBINATION METER ASSEMBLY | *12 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL RELAY - BKUP LP RELAY - TAIL FUSE - BKUP LP FUSE - ECU-DCC NO. 2 FUSE - HAZ FUSE - METER-IG2 FUSE - STOP FUSE - ECU-ACC FUSE (for CVT) |
| *13 | NO. 3 RELAY BLOCK ASSEMBLY - FR FOG RELAY (w/ Front Fog Light) |
*14 | PARKING BRAKE SWITCH ASSEMBLY |
