DTC B15C3: Speaker Output Short [06/2018 - 01/2019]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Toyota GR Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

for 6 Speakers

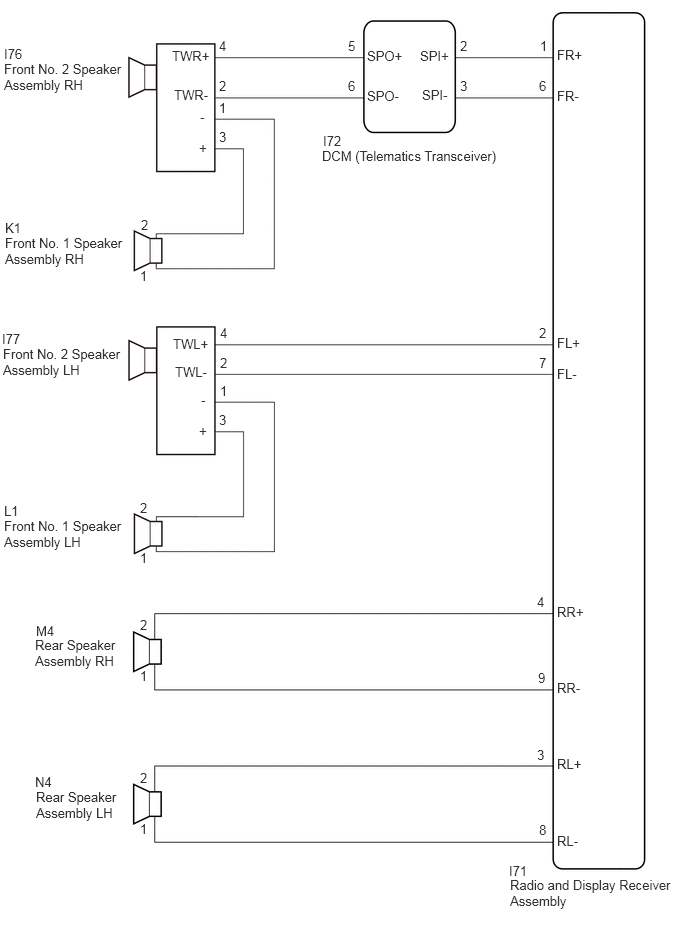

GTY896905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 8 Speakers

GTY871665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

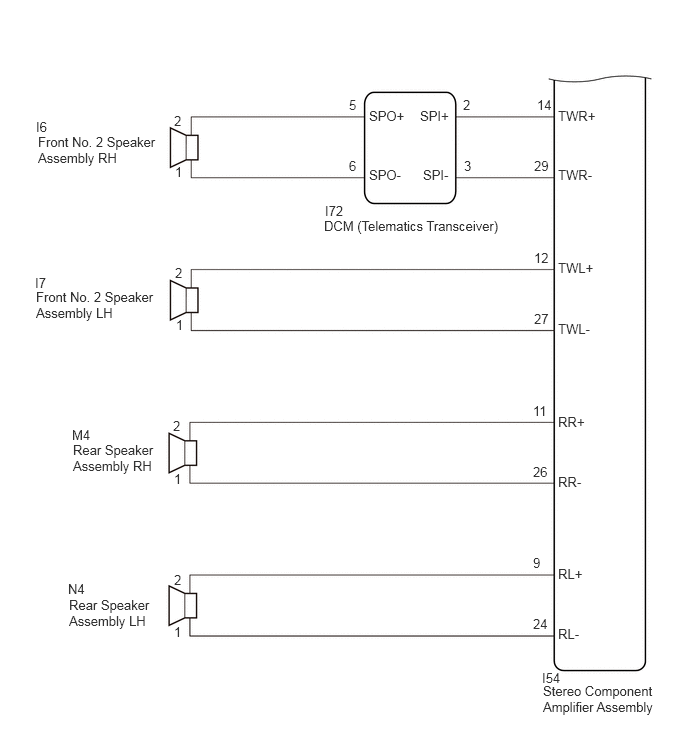

GTY876933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
