DTC B1579: Voice Recognition Microphone Disconnected [01/2019 - 09/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Toyota GR Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

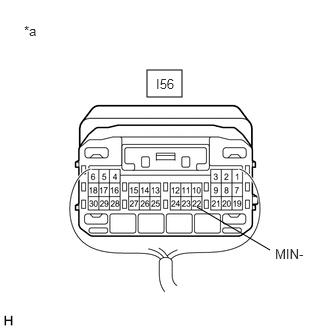

      GTY854581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Radio and Display Receiver Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      I56-22 (MIN-) - Body ground Always Below 1 Ω

      Result

      Result Proceed to
      OK (w/o Manual (SOS) Switch) A
      OK (w/ Manual (SOS) Switch) B
      NG C

    Result:

    B

    See step  3

    Result:

    C

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to  REMOVAL [01/2019 - 03/2019]  , or refer to  REMOVAL [03/2019 - 09/2022]

    Result:

    A

    See step  2

  2. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY)
    1. Disconnect the I56 radio and display receiver assembly connector.
    2. Disconnect the T6 map light assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I56-25 (SNS2) - T6-4 (SNS2) Always Below 1 Ω
      I56-22 (MIN-) - T6-5 (MCO-) Always Below 1 Ω
      I56-25 (SNS2) or T6-4 (SNS2) - Body ground Always 10 kΩ or higher
      I56-22 (MIN-) or T6-5 (MCO-) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  7

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  3. CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) - MAP LIGHT ASSEMBLY)
    1. Disconnect the I72 DCM (telematics transceiver) connector.
    2. Disconnect the T6 map light assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I72-35 (MCI-) - T6-5 (MCO-) Always Below 1 Ω
      I72-35 (MCI-) or T6-5 (MCO-) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the I56 radio and display receiver assembly connector.
    2. Disconnect the I72 DCM (telematics transceiver) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I56-22 (MIN-) - I72-19 (MCO-) Always Below 1 Ω
      I56-22 (MIN-) or I72-19 (MCO-) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY)
    1. Disconnect the I56 radio and display receiver assembly connector.
    2. Disconnect the T6 map light assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I56-25 (SNS2) - T6-4 (SNS2) Always Below 1 Ω
      I56-25 (SNS2) or T6-4 (SNS2) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. INSPECT DCM (TELEMATICS TRANSCEIVER)
    1. Connect the I72 DCM (telematics transceiver) connector.
    2. Connect the I56 radio and display receiver assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

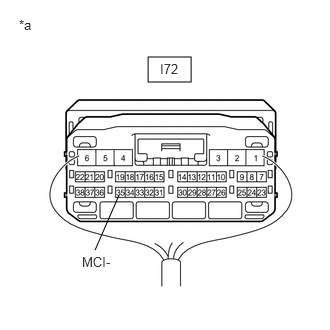

      GTY854141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (DCM (Telematics Transceiver))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I72-35 (MCI-) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE DCM (TELEMATICS TRANSCEIVER). Refer to  REMOVAL [01/2019 - 09/2019]

    Result:

    OK

    See step  7

  7. INSPECT MAP LIGHT ASSEMBLY
    1. Remove the map light assembly.

      Refer to REMOVAL [01/2019 - 09/2022]

    2. Connect the B telephone microphone assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      4 (SNS2) - 5 (MCO-) Always Below 1 Ω
      GTY889792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Map Light Assembly)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to  REMOVAL [01/2019 - 03/2019]  , or refer to  REMOVAL [03/2019 - 09/2022]

    Result:

    NG

    See step  8

  8. INSPECT MAP LIGHT ASSEMBLY
    1. Remove the map light assembly.

      Refer to REMOVAL [01/2019 - 09/2022]

    2. Disconnect the B telephone microphone assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B-1 - T6-4 (SNS2) Always Below 1 Ω
      B-2 - T6-5 (MCO-) Always Below 1 Ω
      B-1 or T6-4 (SNS2) - T6-11 (GND) Always 10 kΩ or higher
      B-2 or T6-5 (MCO-) - T6-11 (GND) Always 10 kΩ or higher
      GTY924385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Map Light Assembly (No. 1 Roof Wire Side))
      *b Component without harness connected
      (Map Light Assembly (Telephone Microphone Assembly Side))

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TELEPHONE MICROPHONE ASSEMBLY. Refer to  REMOVAL [01/2019 - 09/2022]

    Result:

    NG

    REPLACE MAP LIGHT ASSEMBLY. Refer to  REMOVAL [01/2019 - 09/2022]
