DTC B15C3: Speaker Output Short [09/2022 - 11/2022]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Toyota GR Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

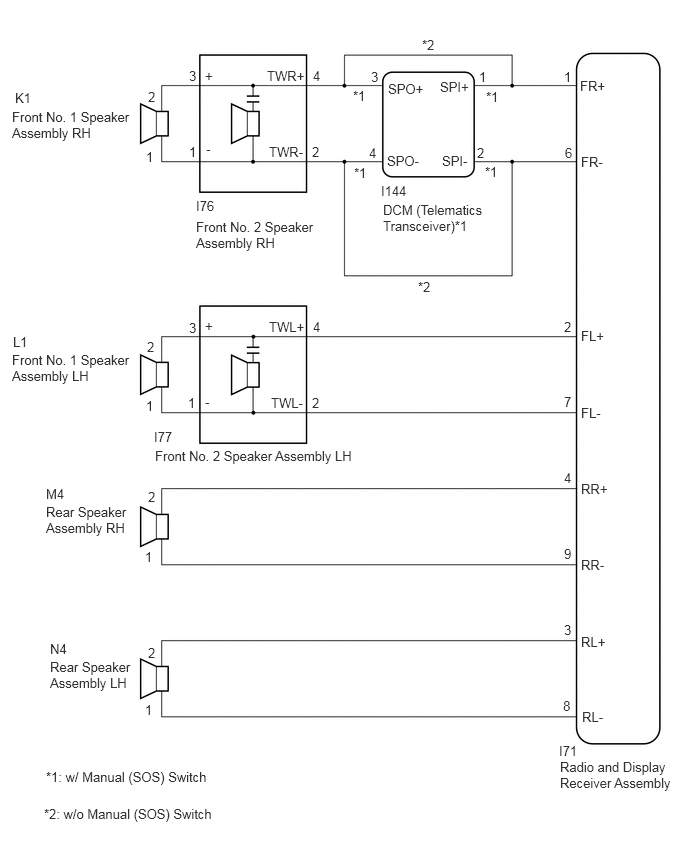

for 6 Speakers

GTY896139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

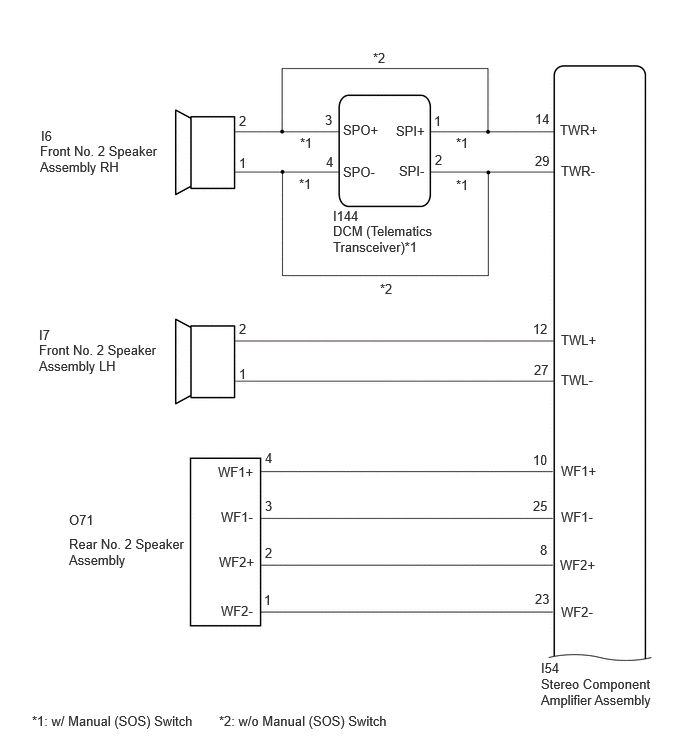

for 9 Speakers

GTY1024701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

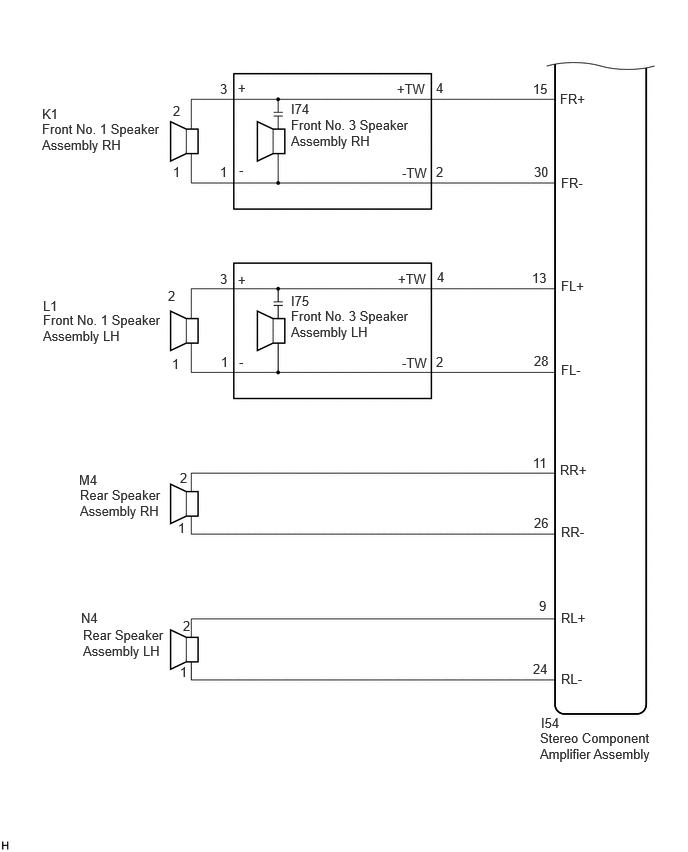

GTY848106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
