DTC B15C3: Speaker Output Short [09/2019 - 04/2020]: Wiring Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Toyota GR Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

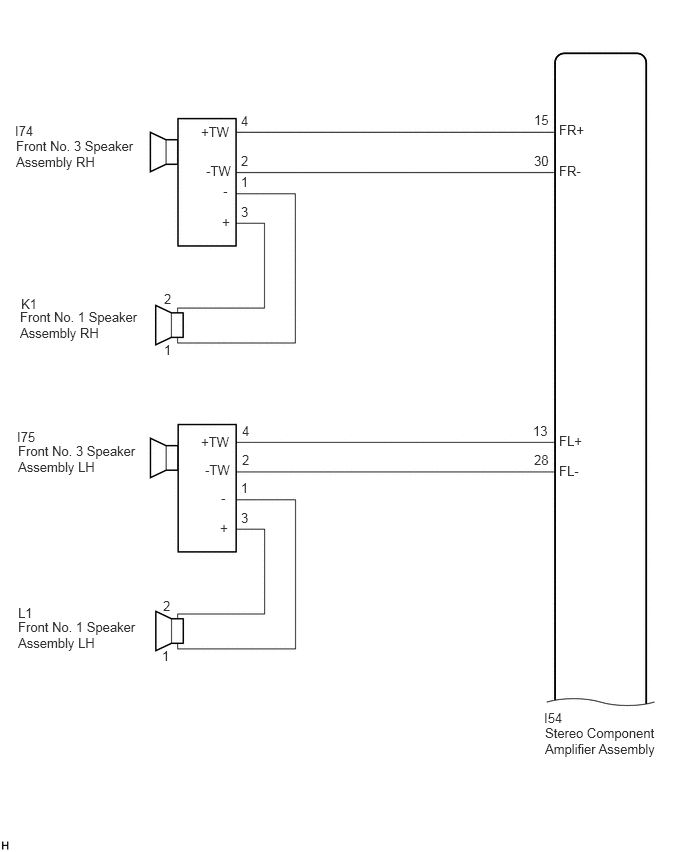

for Hatchback Model without Stereo Component Amplifier Assembly
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

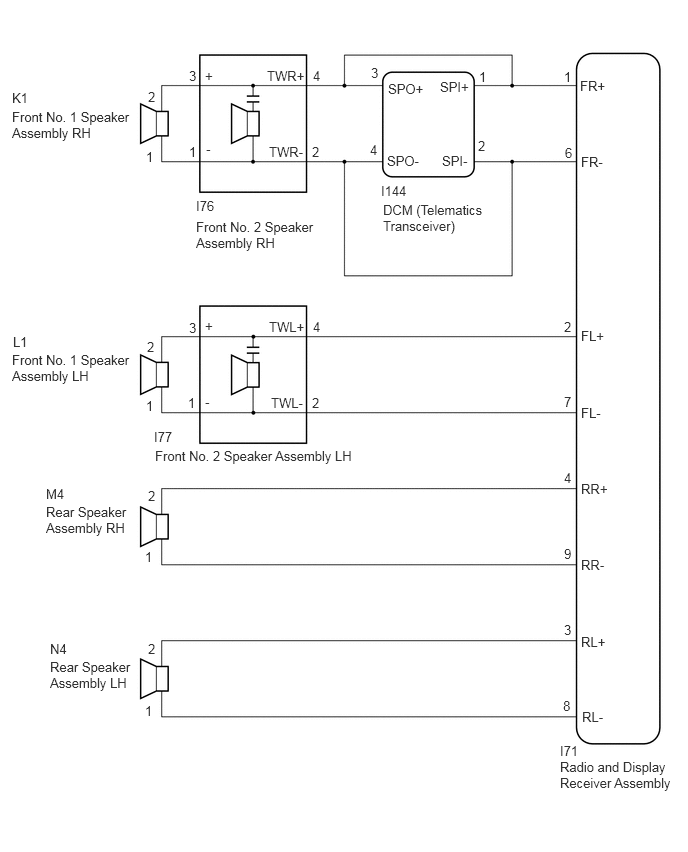

for Sedan Model without Stereo Component Amplifier Assembly
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

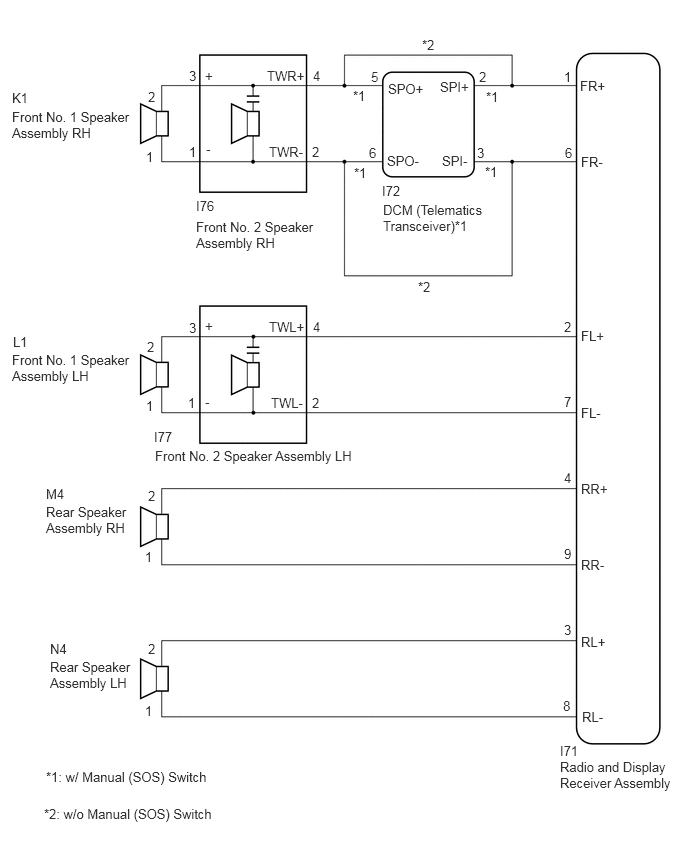

for Hatchback Model with Stereo Component Amplifier Assembly
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

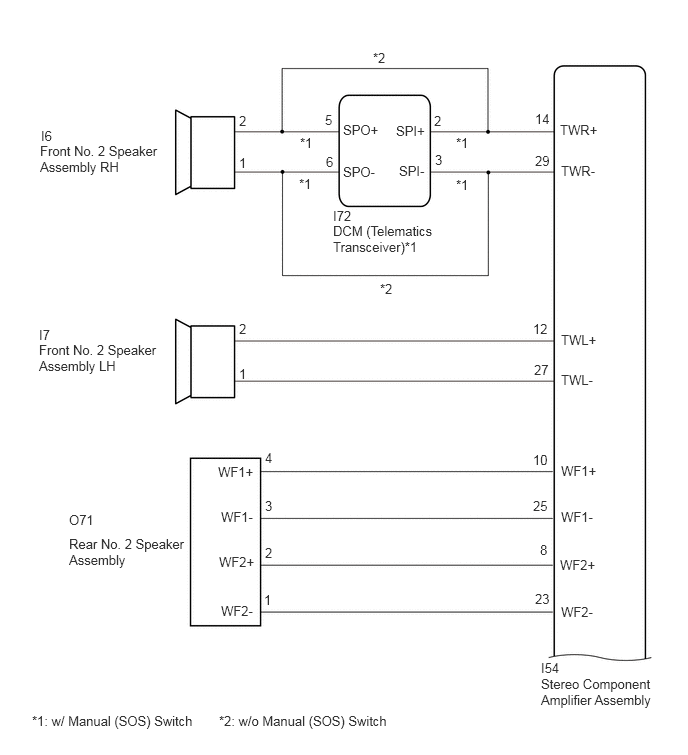

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

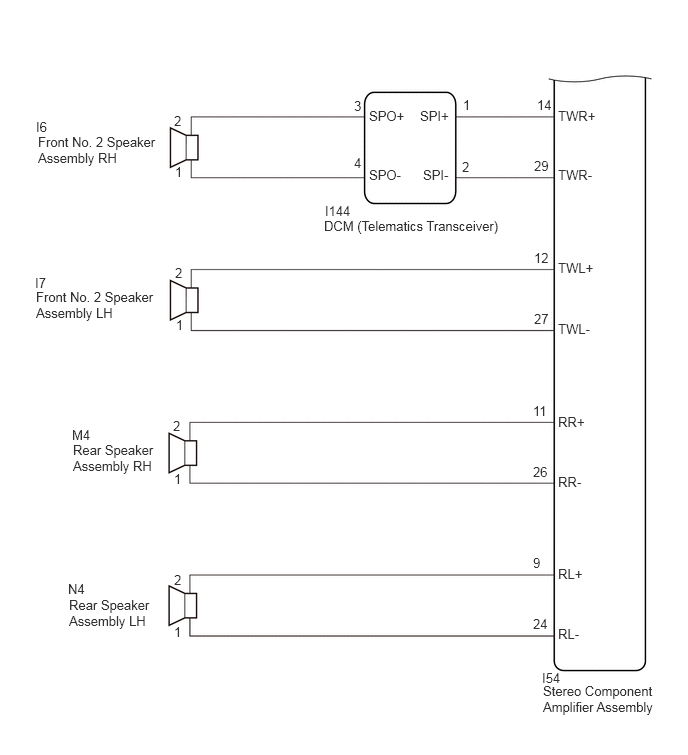

for Sedan Model with Stereo Component Amplifier Assembly
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
