Parts Location [09/2022 - ]: Illustration

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

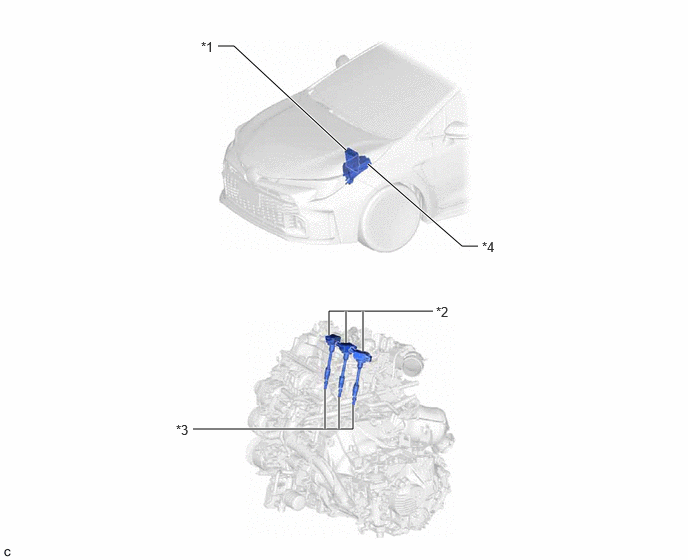

GTY1104283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 IGNITION COIL ASSEMBLY
*3 SPARK PLUG *4 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- INJ FUSE
