VC Output Circuit [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CONNECTION BETWEEN GTS AND ECM
    1. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Refer to PROBLEM SYMPTOMS TABLE [09/2024 - ]

    Result:

    A

    See step  2

  2. CHECK EFI NO. 3 FUSE VOLTAGE
    1. Turn the ignition switch to ON.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      1 (EFI NO. 3 fuse) - Body ground Ignition switch ON 11 to 14 V

      HINT:

      • Check the fuse with it installed to the No. 1 engine room relay block and No. 1 junction block assembly.
      • If the result is not as specified, since current is not flowing to the +B terminals of the ECM, the system may not be started.

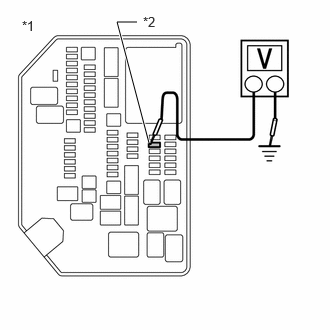

      GTY1250963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Engine Room Relay Block and No. 1 Junction Block Assembly
      *2 EFI NO. 3 Fuse

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO ECM POWER SOURCE CIRCUIT

    Refer to ECM Power Source Circuit [09/2024 - ]

    Result:

    OK

    See step  3

  3. CHECK CONNECTION BETWEEN GTS AND ECM (THROTTLE POSITION SENSOR)
    1. Disconnect the throttle body with motor assembly connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

      HINT:

      • When cleaning or replacing one throttle body with motor assembly, clean the other throttle body with motor assembly.

        Refer to PROCEDURE - Step 4

      • Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

        Refer to INITIALIZATION [09/2022 - ]

    Result:

    B

    REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    A

    See step  4

  4. CHECK COMMUNICATION BETWEEN GTS AND ECM (CRANKSHAFT POSITION SENSOR)
    1. Disconnect the crankshaft position sensor connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE CRANK POSITION SENSOR

    Refer to REMOVAL [11/2022 - ]

    Result:

    A

    See step  5

  5. CHECK COMMUNICATION BETWEEN GTS AND ECM (CAMSHAFT POSITION SENSOR (FOR INTAKE CAMSHAFT))
    1. Disconnect the camshaft position sensor (for intake camshaft) connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE CAMSHAFT POSITION SENSOR (FOR INTAKE CAMSHAFT)

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  6

  6. CHECK COMMUNICATION BETWEEN GTS AND ECM (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT))
    1. Disconnect the camshaft position sensor (for exhaust camshaft) connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  7

  7. CHECK COMMUNICATION BETWEEN GTS AND ECM (NO. 1 TURBO PRESSURE SENSOR)
    1. Disconnect the No. 1 turbo pressure sensor connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE NO. 1 TURBO PRESSURE SENSOR

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  8

  8. CHECK CONNECTION BETWEEN GTS AND ECM (OIL PRESSURE AND TEMPERATURE SENSOR)
    1. Disconnect the oil pressure and temperature sensor connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE OIL PRESSURE AND TEMPERATURE SENSOR

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  9

  9. CHECK COMMUNICATION BETWEEN GTS AND ECM (ACCELERATOR PEDAL POSITION SENSOR)
    1. Disconnect the accelerator pedal sensor assembly connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE ACCELERATOR PEDAL SENSOR ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  10

  10. CHECK COMMUNICATION BETWEEN GTS AND ECM (MASS AIR FLOW METER SUB-ASSEMBLY)
    1. Disconnect the mass air flow meter sub-assembly connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

      HINT:

      Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

      Refer to INITIALIZATION [09/2022 - ]

    Result:

    B

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  11

  11. CHECK COMMUNICATION BETWEEN GTS AND ECM (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE))
    1. Disconnect the fuel pressure sensor (for high pressure side) connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pressure sensor (for high pressure side).

      Refer to INITIALIZATION [09/2022 - ]

    Result:

    B

    REPLACE FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE)

    Refer to REMOVAL [11/2022 - ]

    Result:

    A

    See step  12

  12. CHECK COMMUNICATION BETWEEN GTS AND ECM (NO. 2 FUEL PRESSURE SENSOR (FOR LOW PRESSURE SIDE))
    1. Disconnect the No. 2 fuel pressure sensor (for low pressure side) connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

      HINT:

      Perform "Inspection After Repair" after replacing the No. 2 fuel pressure sensor (for low pressure side).

      Refer to INITIALIZATION [09/2022 - ]

    Result:

    B

    REPLACE NO. 2 FUEL PRESSURE SENSOR (FOR LOW PRESSURE SIDE)

    Refer to REMOVAL [11/2022 - ]

    Result:

    A

    See step  13

  13. CHECK COMMUNICATION BETWEEN GTS AND ECM (MANIFOLD ABSOLUTE PRESSURE SENSOR)
    1. Disconnect the manifold absolute pressure sensor connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  14

  14. CHECK COMMUNICATION BETWEEN GTS AND ECM (NO. 2 TURBO PRESSURE SENSOR)
    1. Disconnect the No. 2 turbo pressure sensor connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE NO. 2 TURBO PRESSURE SENSOR

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  15

  15. CHECK CONNECTION BETWEEN GTS AND ECM (VACUUM SENSOR ASSEMBLY)
    1. Disconnect the vacuum sensor assembly connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE VACUUM SENSOR ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  16

  16. CHECK CONNECTION BETWEEN GTS AND ECM (CANISTER PUMP MODULE)
    1. Disconnect the canister pump module connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    B

    REPLACE CANISTER PUMP MODULE

    Refer to REMOVAL [11/2022 - ]

    Result:

    A

    See step  17

  17. CHECK CONNECTION BETWEEN GTS AND ECM (EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY)
    1. Disconnect the exhaust pipe gas control actuator sub-assembly connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible (for M/T Models) A
      Communication is not possible (for A/T Models) B
      Communication is possible C

    Result:

    B

    See step  20

    Result:

    C

    REPLACE EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

    Result:

    A

    See step  18

  18. CHECK COMMUNICATION BETWEEN GTS AND ECM (CLUTCH PEDAL STROKE SENSOR ASSEMBLY)
    1. Disconnect the clutch pedal stroke sensor assembly connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

      HINT:

      Perform "Inspection After Repair" after replacing the turbocharger sub-assembly.

      Refer to INITIALIZATION [09/2022 - ]

    Result:

    B

    REPLACE CLUTCH PEDAL STROKE SENSOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    A

    See step  19

  19. CHECK CONNECTION BETWEEN GTS AND ECM (NEUTRAL POSITION SWITCH)
    1. Disconnect the neutral position switch connector.
    2. Check the communication between the GTS and ECM.

      HINT:

      It can be checked using the "Engine" item of the Data List.

      Result

      Result Proceed to
      Communication is not possible A
      Communication is possible B

    Result:

    A

    See step  20

    Result:

    B

    REPLACE NEUTRAL POSITION SWITCH

    Refer to REMOVAL [09/2024 - ]

  20. CHECK HARNESS AND CONNECTOR
    1. Disconnect the throttle body with motor assembly connector.
    2. Disconnect the crankshaft position sensor connector.
    3. Disconnect the camshaft position sensor (for intake camshaft) connector.
    4. Disconnect the camshaft position sensor (for exhaust camshaft) connector.
    5. Disconnect the No. 1 turbo pressure sensor connector.
    6. Disconnect the oil pressure and temperature sensor connector.
    7. Disconnect the accelerator pedal sensor assembly connector.
    8. Disconnect the mass air flow meter sub-assembly connector.
    9. Disconnect the fuel pressure sensor (for high pressure side) connector.
    10. Disconnect the No. 2 fuel pressure sensor (for low pressure side) connector.
    11. Disconnect the manifold absolute pressure sensor connector.
    12. Disconnect the No. 2 turbo pressure sensor connector.
    13. Disconnect the vacuum sensor assembly connector.
    14. Disconnect the canister pump module connector.
    15. Disconnect the exhaust pipe gas control actuator sub-assembly connector.
    16. Disconnect the clutch pedal stroke sensor assembly connector. (for M/T Models)
    17. Disconnect the neutral position switch connector. (for M/T Models)
    18. Disconnect the ECM connectors.
    19. Remove the EFI MAIN NO. 1 relay, EFI-MAIN NO. 2 relay, EFI-MAIN NO. 3 relay and EDU relay from the No. 1 engine room relay block and No. 1 junction block assembly.

      HINT:

      Remove the EFI MAIN NO. 1 relay, EFI-MAIN NO. 2 relay, EFI-MAIN NO. 3 relay and EDU relay connected between the checked terminals as the coil inside the relay influences the measurement value.

    20. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C142-109 (VCTA) - Body ground Always 10 kΩ or higher
      C142-116 (VCNE) - Body ground Always 10 kΩ or higher
      C142-88 (VCV1) - Body ground Always 10 kΩ or higher
      C142-113 (VCE1) - Body ground Always 10 kΩ or higher
      C142-75 (VCPM) - Body ground Always 10 kΩ or higher
      C142-77 (VCPE) - Body ground Always 10 kΩ or higher
      A139-57 (VCPA) - Body ground Always 10 kΩ or higher
      C142-84 (VCVG) - Body ground Always 10 kΩ or higher
      C142-96 (VCPR) - Body ground Always 10 kΩ or higher
      C142-120 (VCPF) - Body ground Always 10 kΩ or higher
      C142-82 (VCPC) - Body ground Always 10 kΩ or higher
      C142-80 (VPTA) - Body ground Always 10 kΩ or higher
      C143-34 (V1PC) - Body ground Always 10 kΩ or higher
      A139-48 (VCPP) - Body ground Always 10 kΩ or higher
      C143-51 (VCEA) - Body ground Always 10 kΩ or higher
      A139-43 (VCCL)* - Body ground Always 10 kΩ or higher
      C143-39 (VCNP)* - Body ground Always 10 kΩ or higher
      5 (EFI MAIN NO. 1 relay) - A139-9 (+B) Always Below 1 Ω
      5 (EFI MAIN NO. 1 relay) - A139-35 (+B2) Always Below 1 Ω

      *: for M/T Models

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [09/2024 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

scientia non olet · About LEMON Manuals
