Parts Location [06/2021 - 09/2022]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Toyota GR Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

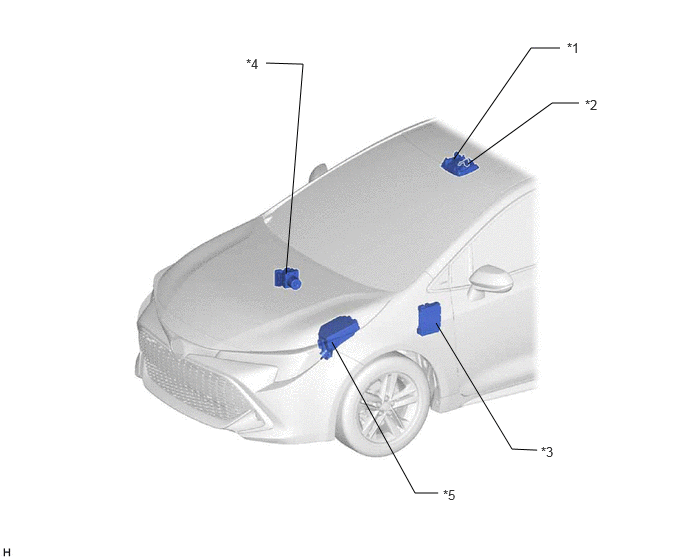

| *1 | MAP LIGHT ASSEMBLY | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - RADIO FUSE - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-IG2 NO. 3 FUSE (w/ Manual (SOS) Switch) - ECU-B NO. 2 FUSE - PANEL FUSE - METER-IG2 FUSE |
*4 | SKID CONTROL ECU (Brake Actuator Assembly) (w/ Electric Parking Brake System) |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - AMP FUSE (w/ Stereo Component Amplifier Assembly) - DCM/MAYDAY FUSE (w/ Manual (SOS) Switch) |
- | - |

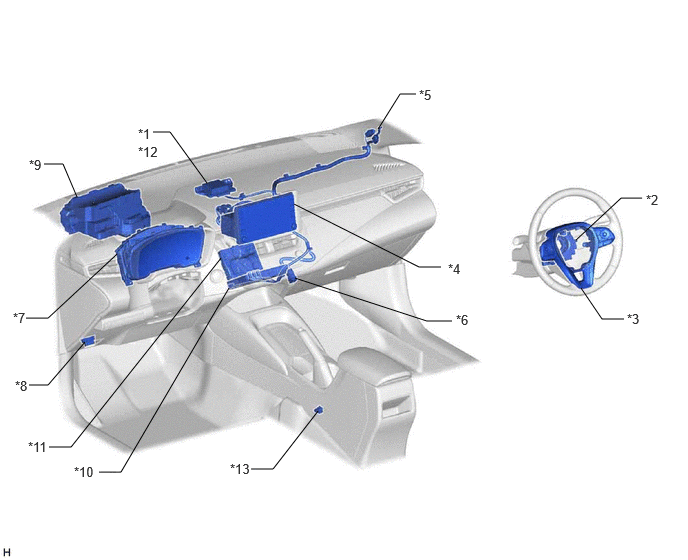

| *1 | NAVIGATION ANTENNA ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *6 | NO. 1 STEREO JACK ADAPTER ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) (w/ Headup Display System) | *10 | NAVIGATION ECU |
| *11 | DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch) | *12 | - GPS |
| *13 | PARKING BRAKE SWITCH ASSEMBLY (w/o Electric Parking Brake System) | - | - |

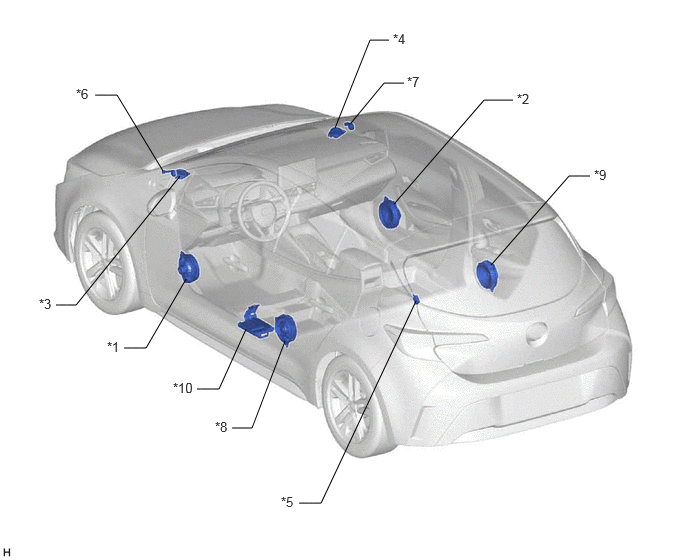

for Hatchback Model
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | RADIO SETTING CONDENSER | *6 | FRONT NO. 3 SPEAKER ASSEMBLY LH |
| *7 | FRONT NO. 3 SPEAKER ASSEMBLY RH | *8 | REAR SPEAKER ASSEMBLY LH |
| *9 | REAR SPEAKER ASSEMBLY RH | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY |

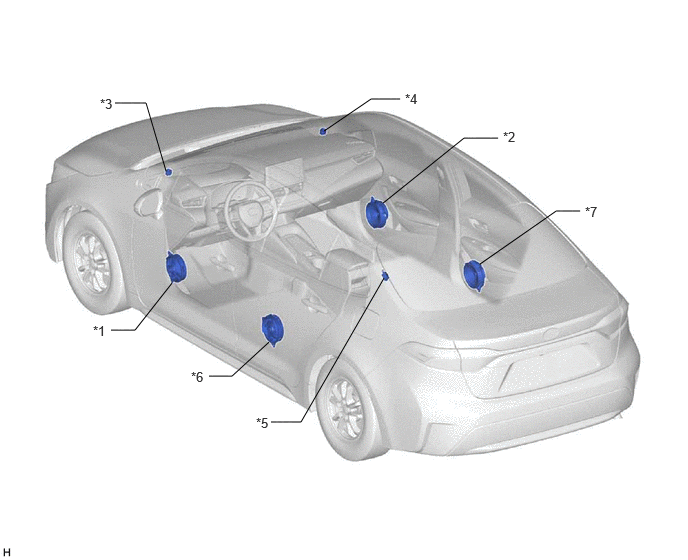

for Sedan Model without Stereo Component Amplifier Assembly
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | RADIO SETTING CONDENSER | *6 | REAR SPEAKER ASSEMBLY LH |
| *7 | REAR SPEAKER ASSEMBLY RH | - | - |

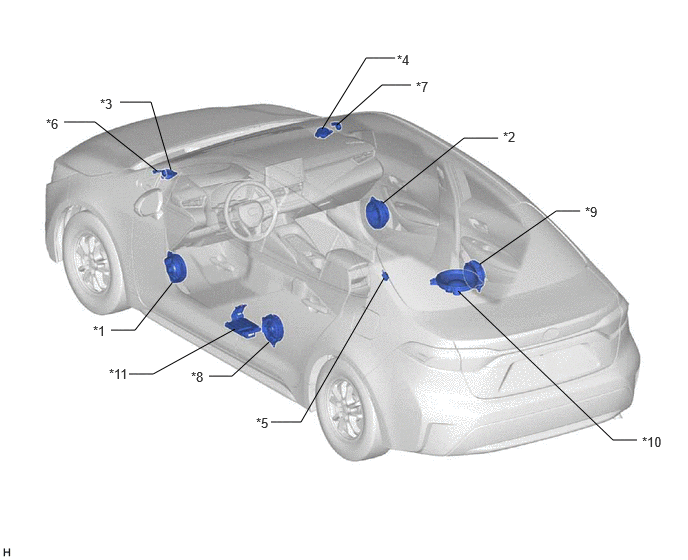

for Sedan Model with Stereo Component Amplifier Assembly
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | RADIO SETTING CONDENSER | *6 | FRONT NO. 3 SPEAKER ASSEMBLY LH |
| *7 | FRONT NO. 3 SPEAKER ASSEMBLY RH | *8 | REAR SPEAKER ASSEMBLY LH |
| *9 | REAR SPEAKER ASSEMBLY RH | *10 | REAR NO. 2 SPEAKER ASSEMBLY |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |

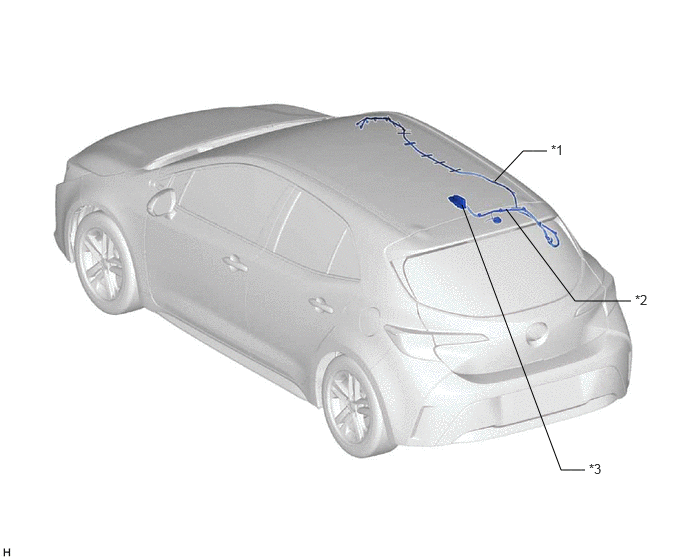

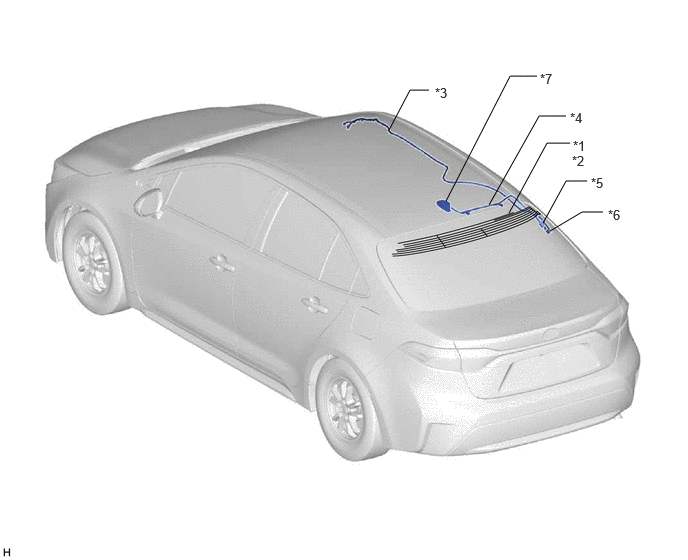

for Hatchback Model
| *1 | ANTENNA CORD SUB-ASSEMBLY (for Type A) | *2 | ANTENNA CORD SUB-ASSEMBLY (for Type B) |
| *3 | ROOF ANTENNA ASSEMBLY - AM - FM - SiriusXM (w/ SXM Function) |
- | - |
