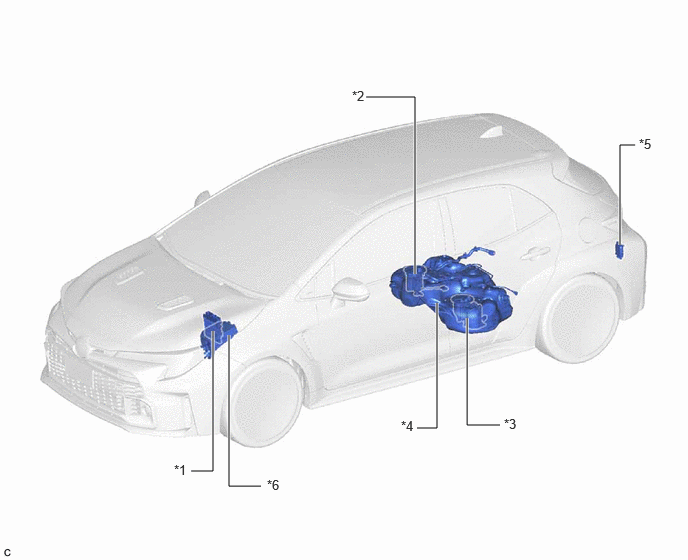

Parts Location [09/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | ECM | *2 | FUEL TANK VENT TUBE ASSEMBLY |
| *3 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *4 | FUEL TANK SUB-ASSEMBLY |
| *5 | FUEL PUMP CONTROL ECU | *6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - IG2 NO. 1 RELAY - EFI-MAIN NO. 2 RELAY - INJ FUSE |
