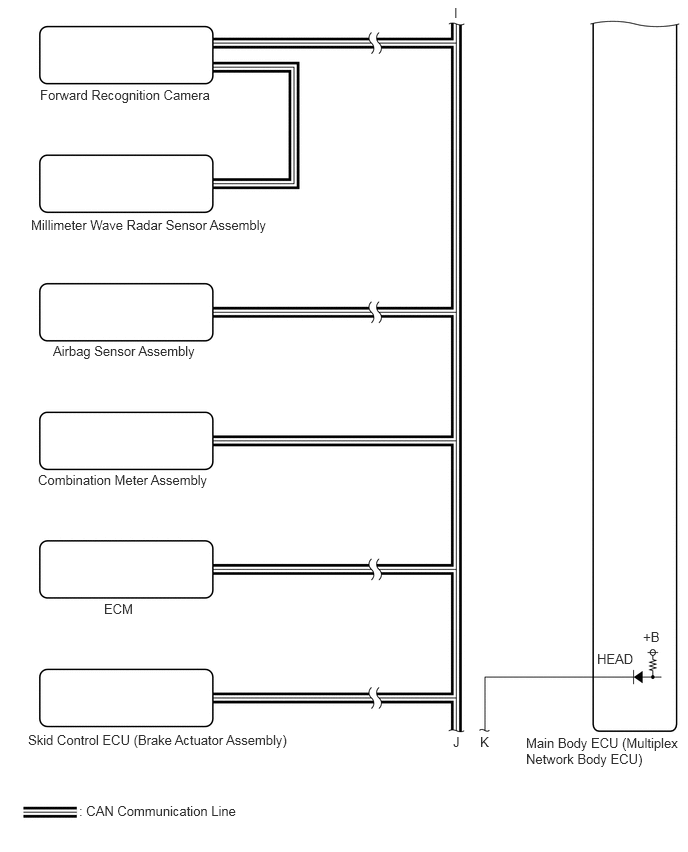

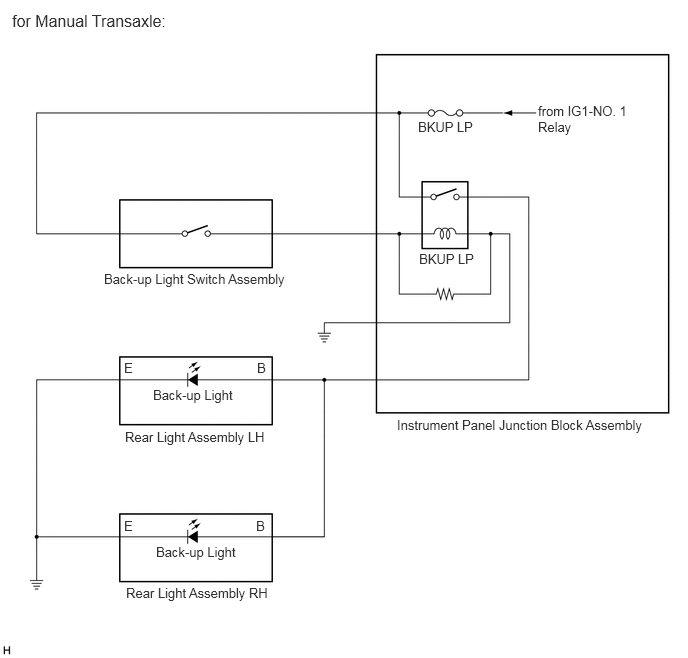

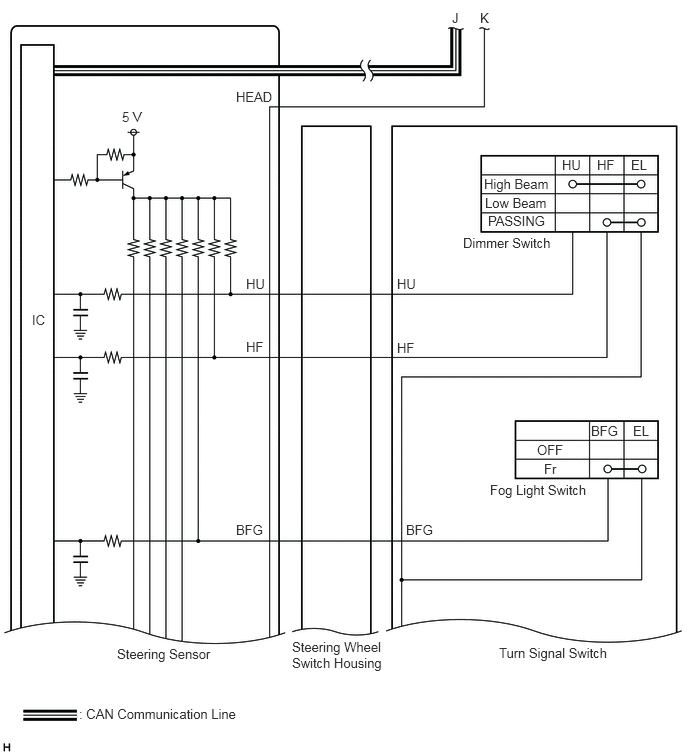

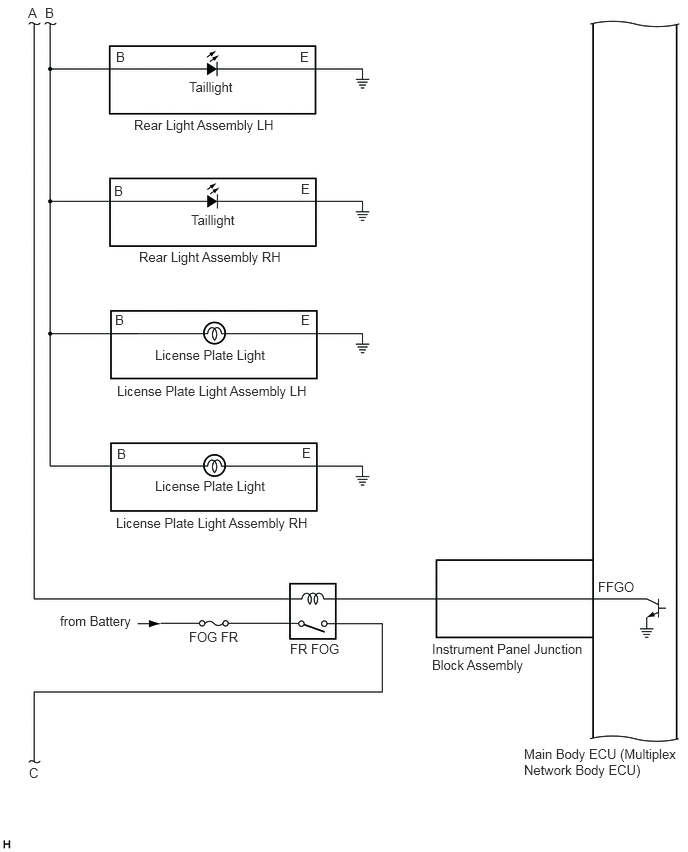

System Diagram [06/2018 - 01/2019]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

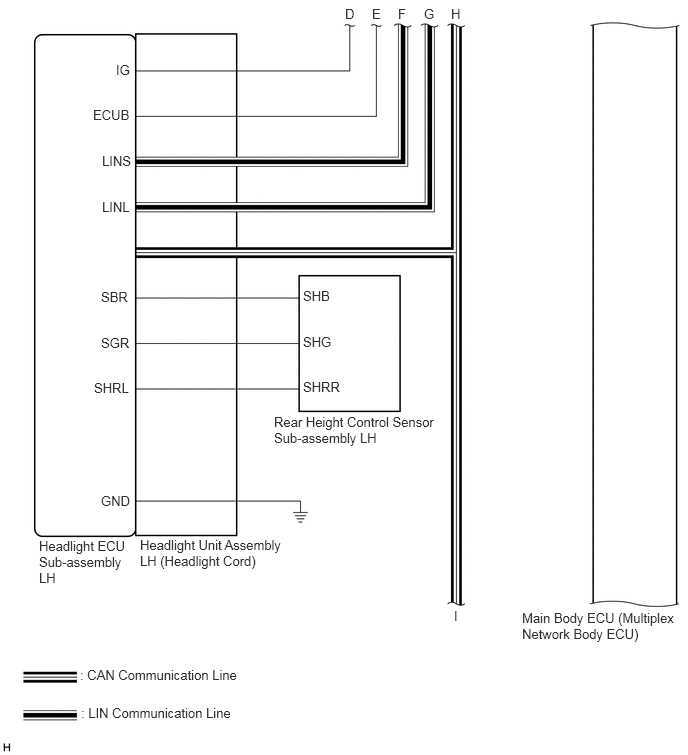

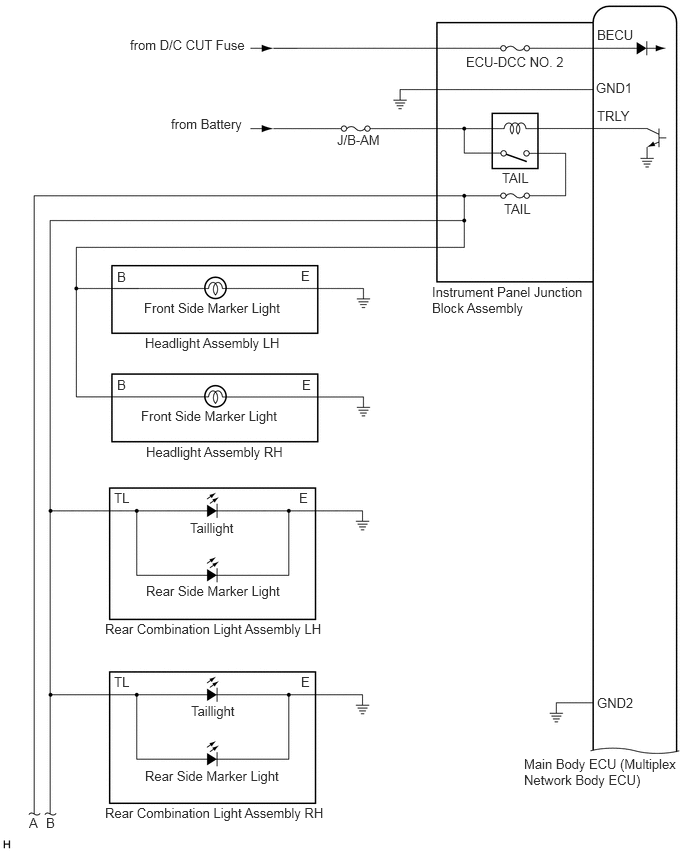

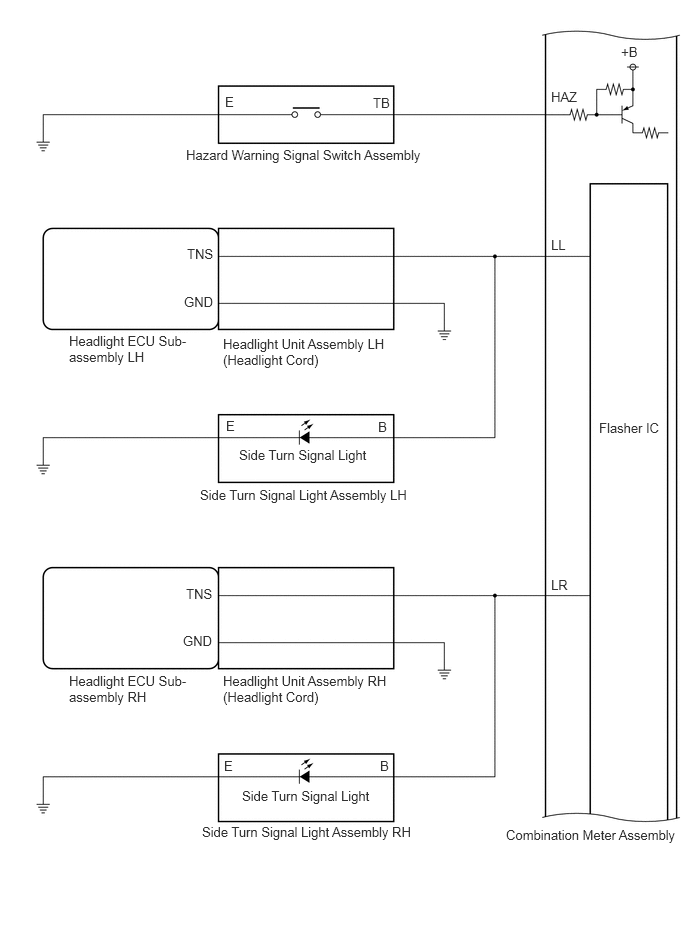

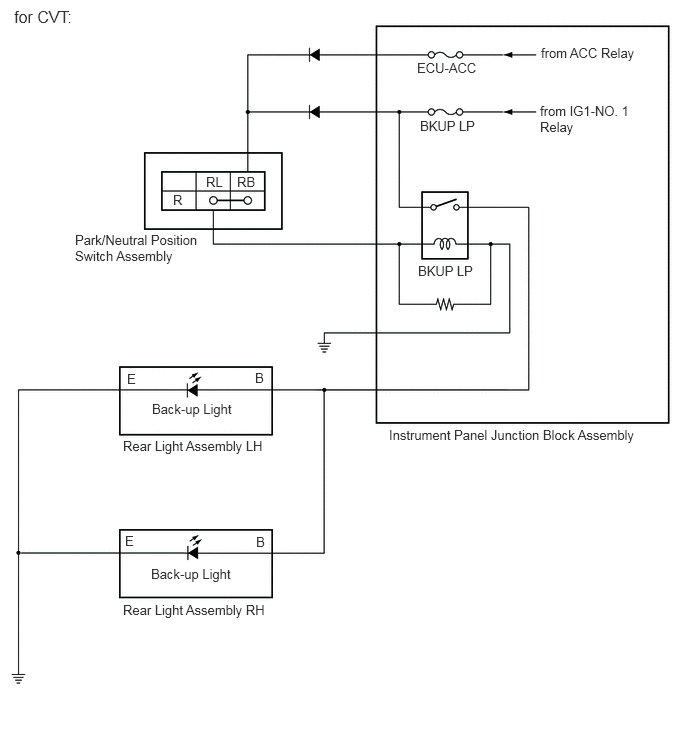

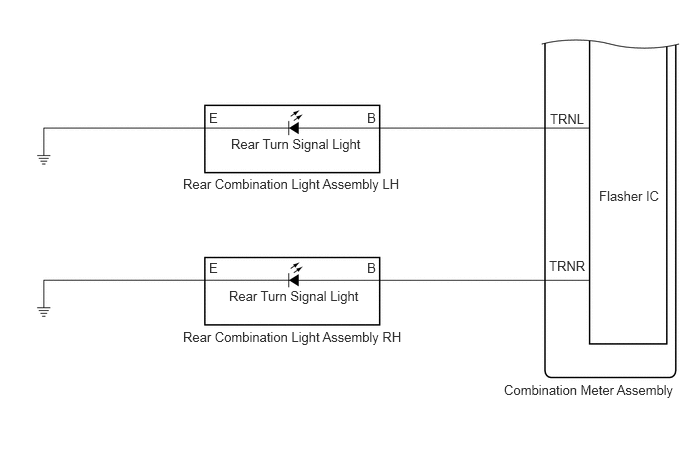

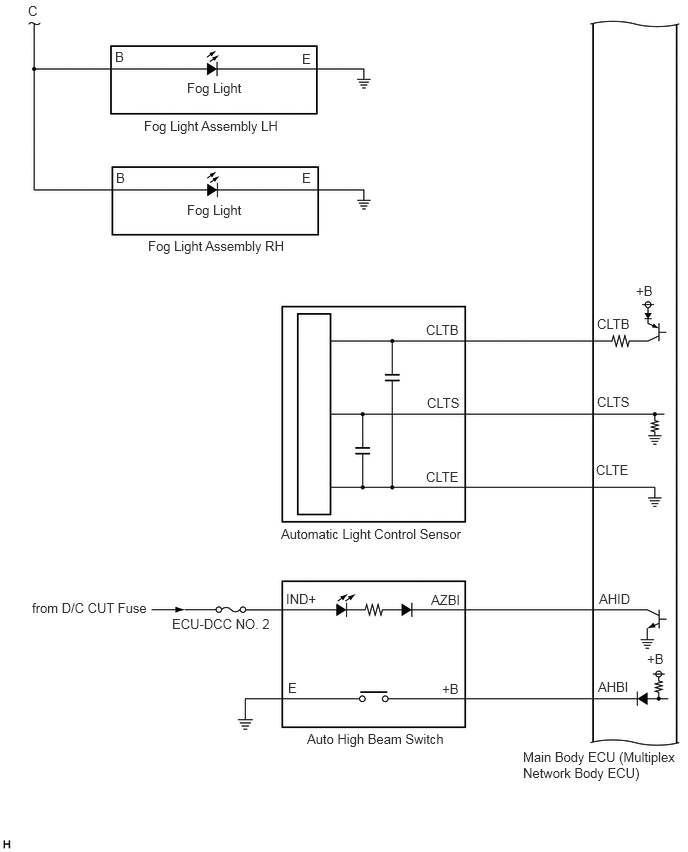

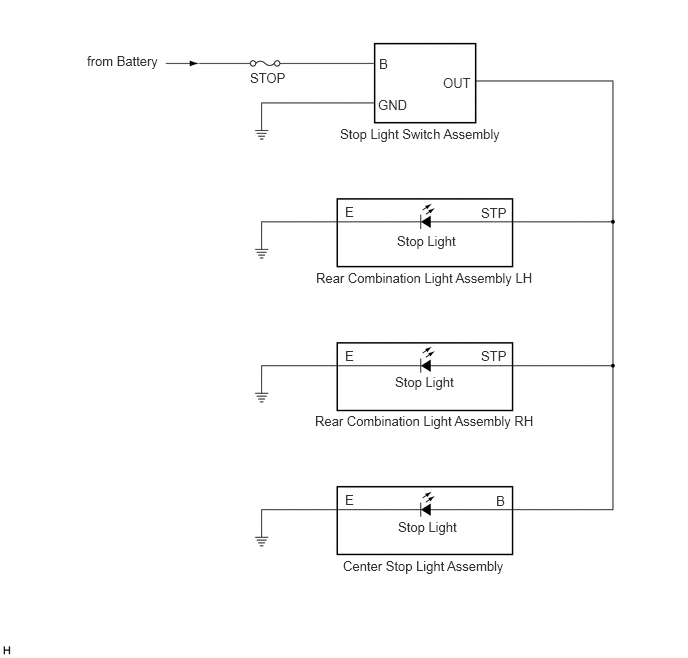

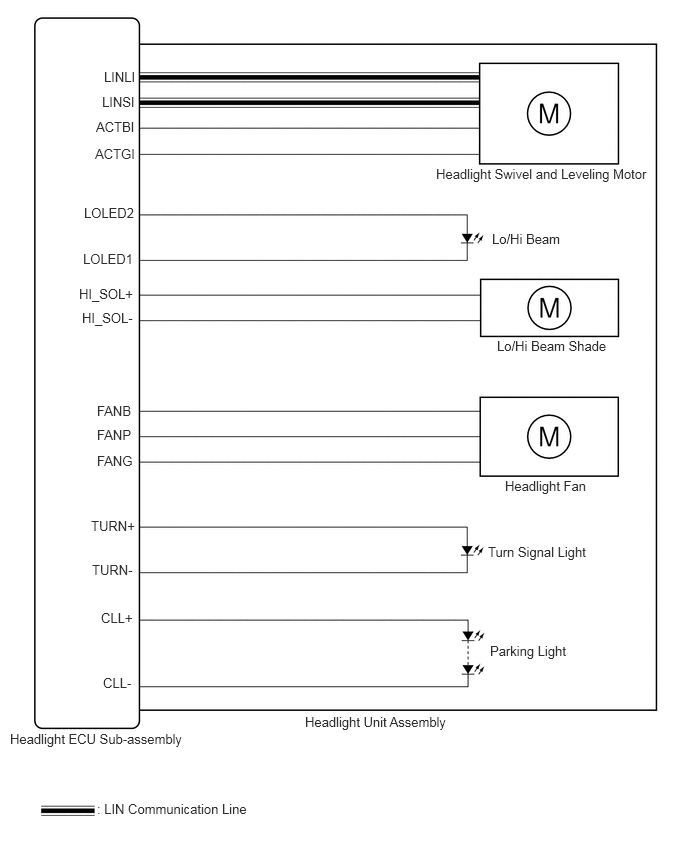

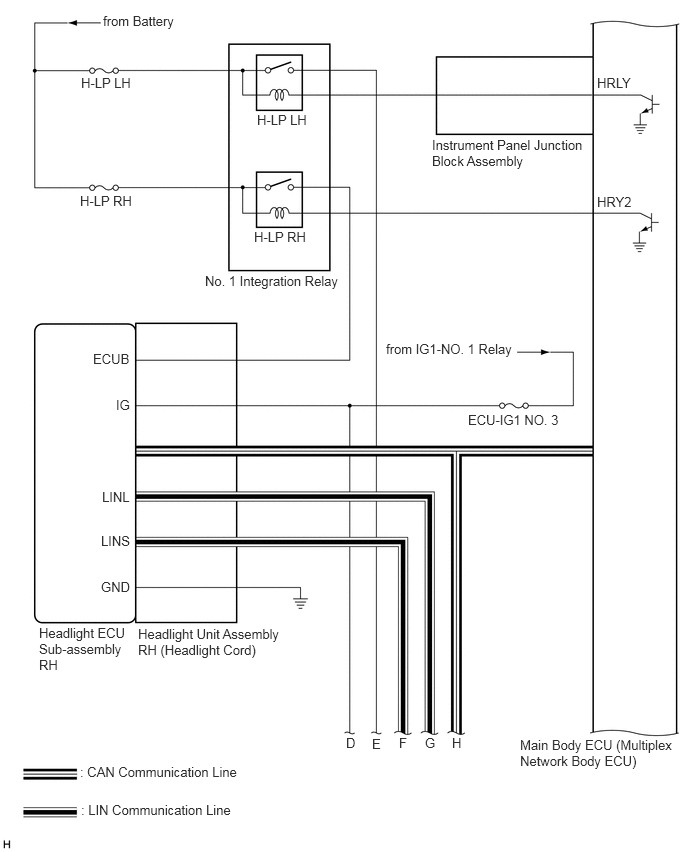

- HEADLIGHT ASSEMBLY CIRCUIT
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
