System Diagram [01/2019 - 04/2020]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

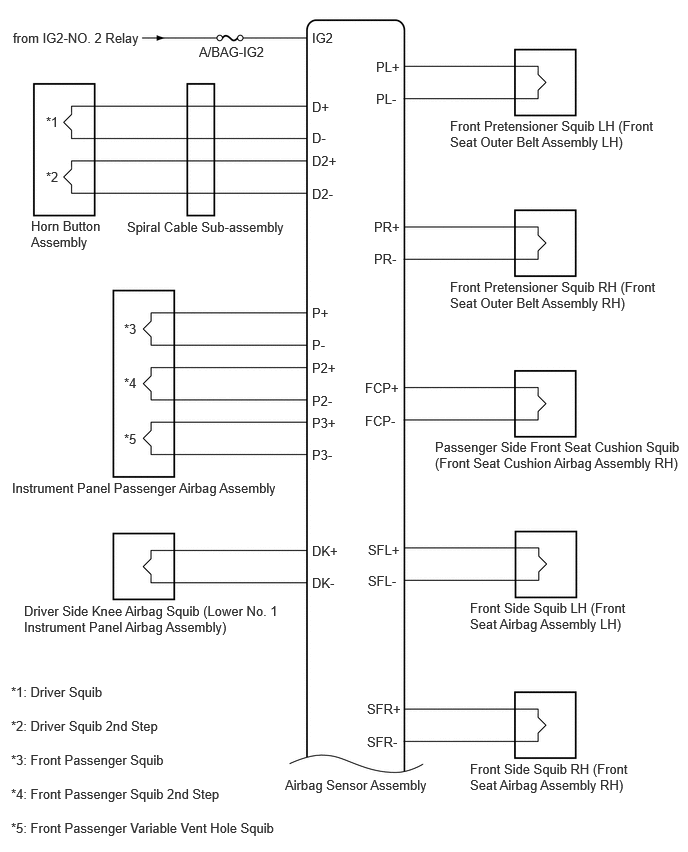

GTY884340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

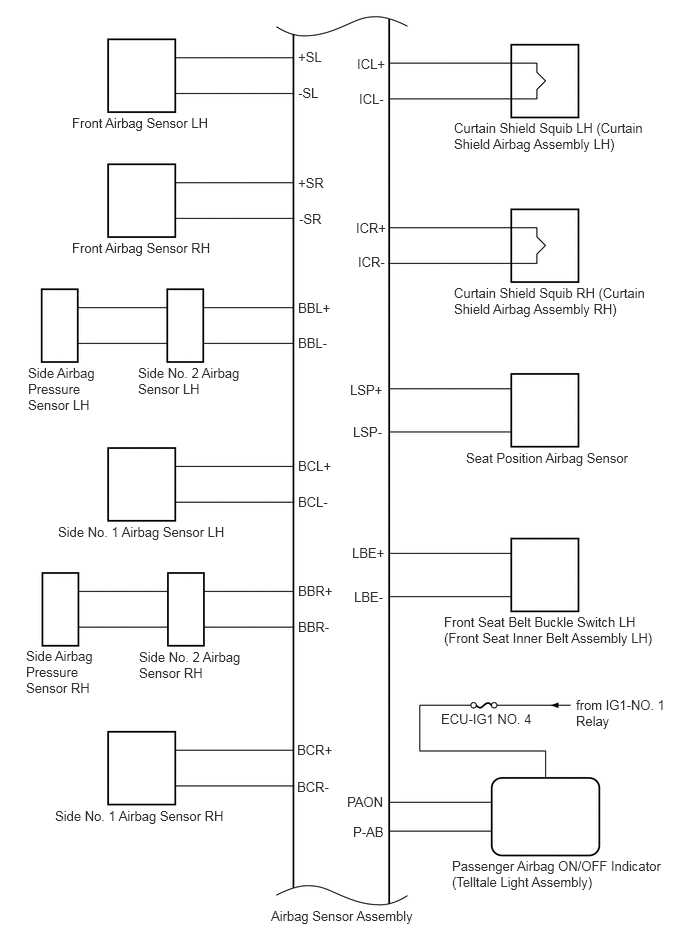

GTY907271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

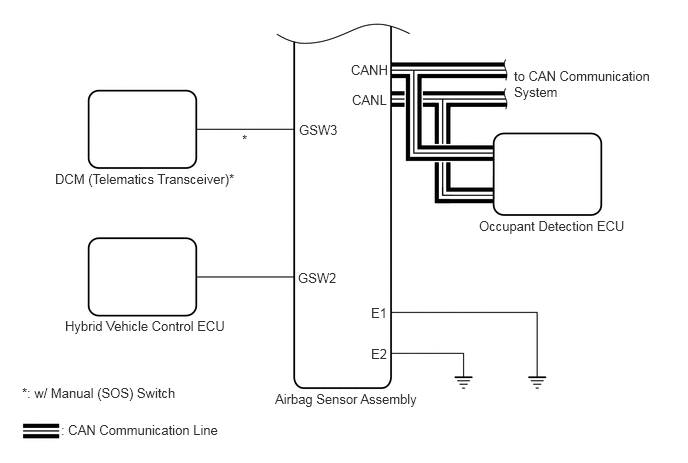

GTY935099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU
(Transmitter)		 Receiving ECU Signal Communication Method
Airbag Sensor Assembly Occupant Detection ECU
  • Crash detection signal
  • Acceleration signal
 CAN
Airbag Sensor Assembly Hybrid Vehicle Control ECU
  1. Crash detection signal
Airbag Sensor Assembly Combination Meter Assembly
  1. SRS warning light on demand signal
Occupant Detection ECU Airbag Sensor Assembly
  • Occupant classification system failure signal
  • Occupant classification system zero point error signal
  • Occupant state for front passenger signal
  • Buckle switch state of front passenger signal
