Parts Location [01/2019 - 04/2020]: Illustration
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

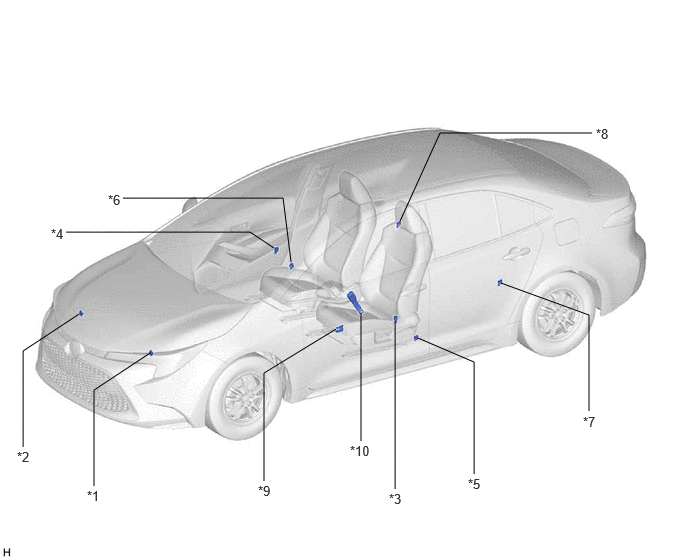

| *1 | FRONT AIRBAG SENSOR LH | *2 | FRONT AIRBAG SENSOR RH |
| *3 | SIDE AIRBAG PRESSURE SENSOR LH | *4 | SIDE AIRBAG PRESSURE SENSOR RH |
| *5 | SIDE NO. 1 AIRBAG SENSOR LH | *6 | SIDE NO. 1 AIRBAG SENSOR RH |
| *7 | SIDE NO. 2 AIRBAG SENSOR LH | *8 | SIDE NO. 2 AIRBAG SENSOR RH |
| *9 | SEAT POSITION AIRBAG SENSOR | *10 | FRONT SEAT INNER BELT ASSEMBLY LH - FRONT SEAT BELT BUCKLE SWITCH LH |

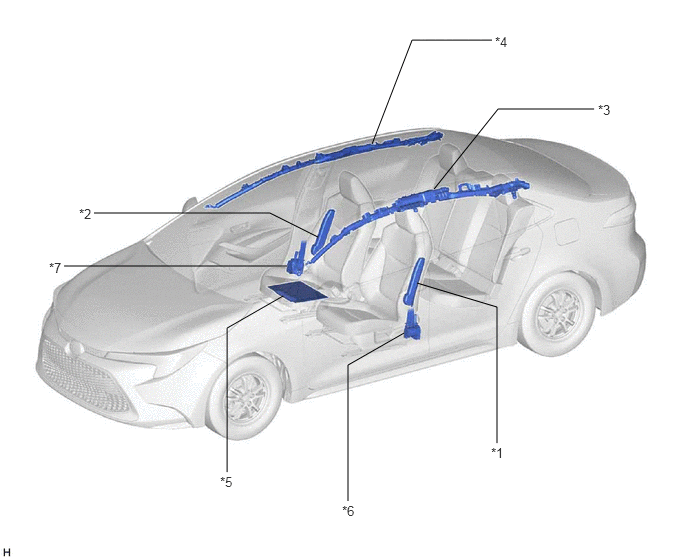

| *1 | FRONT SEAT AIRBAG ASSEMBLY LH | *2 | FRONT SEAT AIRBAG ASSEMBLY RH |
| *3 | CURTAIN SHIELD AIRBAG ASSEMBLY LH | *4 | CURTAIN SHIELD AIRBAG ASSEMBLY RH |
| *5 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH | *6 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *7 | FRONT SEAT OUTER BELT ASSEMBLY RH | - | - |

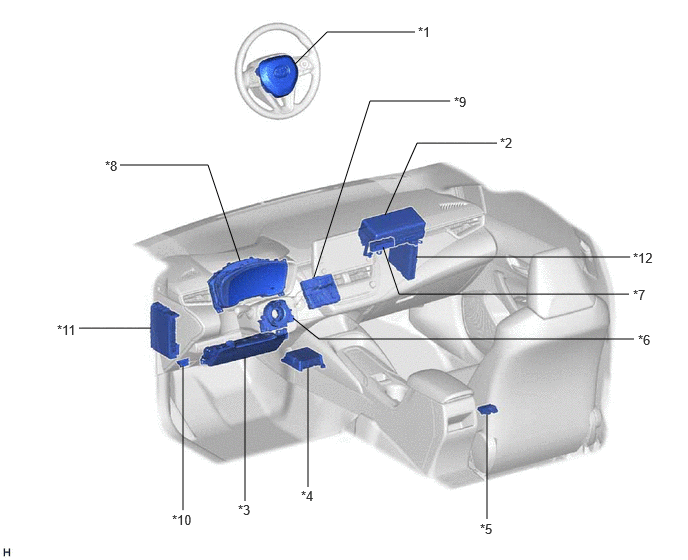

| *1 | HORN BUTTON ASSEMBLY | *2 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *3 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *4 | AIRBAG SENSOR ASSEMBLY |
| *5 | OCCUPANT DETECTION ECU | *6 | SPIRAL CABLE SUB-ASSEMBLY |
| *7 | TELLTALE LIGHT ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
*8 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
| *9 | DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch) | *10 | DLC3 |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - METER-IG2 FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE |
*12 | HYBRID VEHICLE CONTROL ECU |
