Removal [01/2019 - 03/2019]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [01/2019 - 03/2019]

  2. REMOVE METER MIRROR SUB-ASSEMBLY

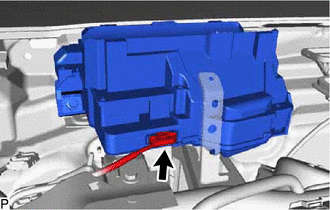

    1. Disconnect the connector.
      GTY894947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

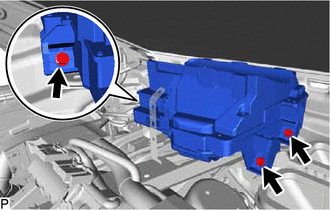

    2. Remove the 3 bolts and meter mirror sub-assembly.
      GTY894948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
