Components [01/2019 - 09/2022]
Fig 1: Brake Actuator (For Gasoline Model) Replacement Components With Torque Specifications [01/2019 - 09/2022] (1 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | *2 | OUTER COWL TOP PANEL SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

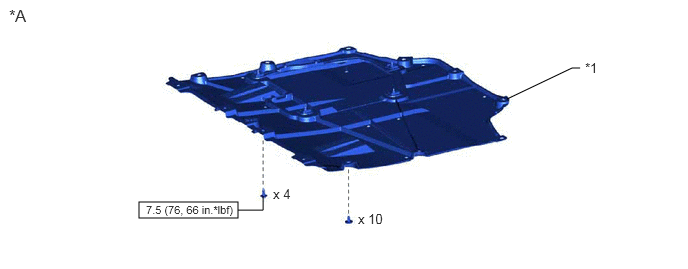

Fig 2: Brake Actuator (For Gasoline Model) Replacement Components With Torque Specifications [01/2019 - 09/2022] (2 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for M20A-FKS | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

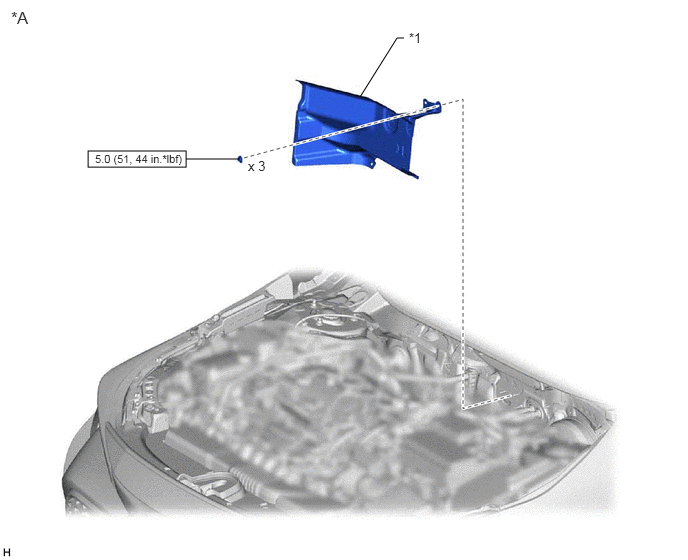

Fig 3: Brake Actuator (For Gasoline Model) Replacement Components With Torque Specifications [01/2019 - 09/2022] (3 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for M20A-FKS | - | - |
| *1 | DASH PANEL HEAT INSULATOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

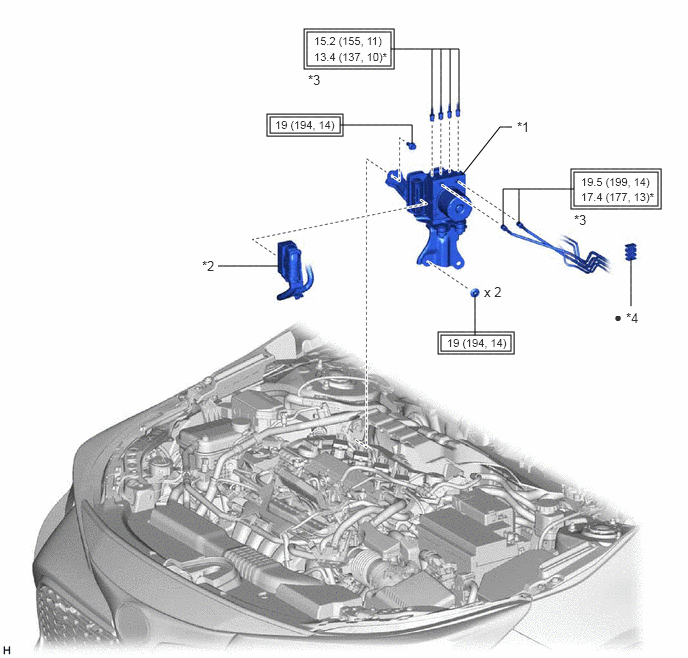

Fig 4: Brake Actuator (For Gasoline Model) Replacement Components With Torque Specifications [01/2019 - 09/2022] (4 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE ACTUATOR WITH BRACKET | *2 | CONNECTOR |
| *3 | BRAKE LINE | *4 | NO. 1 BRAKE TUBE CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |

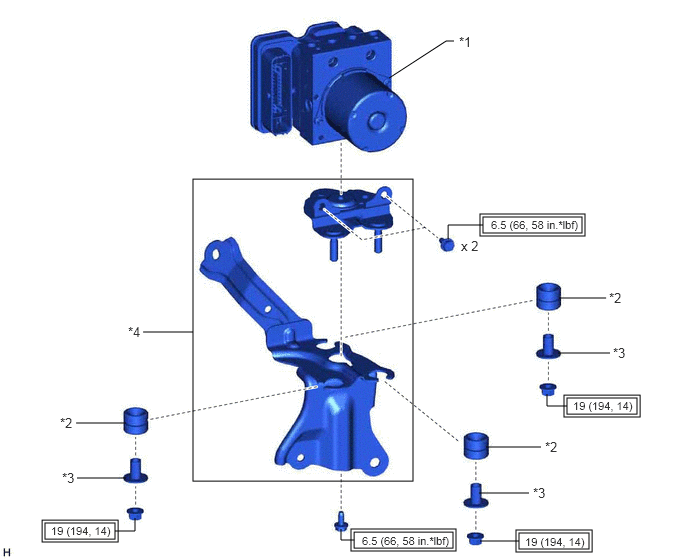

Fig 5: Brake Actuator (For Gasoline Model) Replacement Components With Torque Specifications [01/2019 - 09/2022] (5 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE ACTUATOR BRACKET CUSHION |
| *3 | NO. 1 BRAKE ACTUATOR CASE COLLAR | *4 | BRAKE ACTUATOR BRACKET ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
