Stop Light Switch
>>
Components [06/2018 - ]
Components [06/2018 - ]

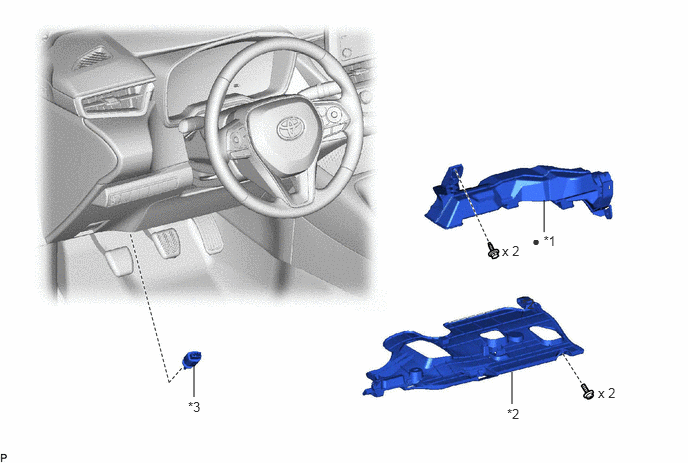

Fig 1: Stop Light Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
NO. 1 AIR DUCT
*2
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*3
STOP LIGHT SWITCH ASSEMBLY
-
-
•
Non-reusable part
-
-
