Section 147 (Automatic Transaxle System (UB80F) - Diagnostic Codes (3 Of 3) & Circuit Tests)
>>
Automatic Transaxle System
>>
Transmission Control Switch Circuit [12/2021 - ]
>>
Wiring Diagram

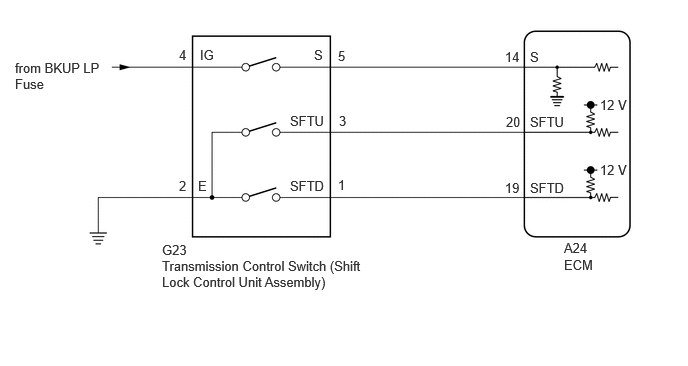

Transmission Control Switch Circuit [12/2021 - ]: Wiring Diagram
