Section 115 (Motor Generator Control System (Lithium-Ion Battery) - Diagnostics - Introduction (1 Of 2))
>>
MOTOR GENERATOR CONTROL SYSTEM (for LITHIUM-ION BATTERY)
>>
System Diagram [06/2020 - ]
>>
System Diagram [06/2020 - ]
System Diagram [06/2020 - ]
WARNING:
This page is about a different variant/trim than selected.

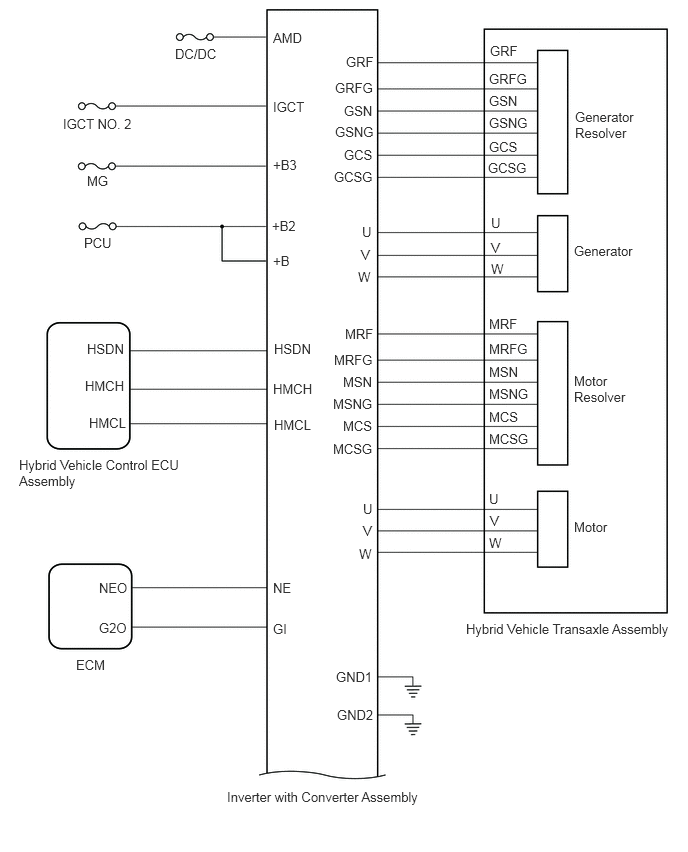

Fig 1: Motor Generator Control System Diagram (For Lithium-Ion Battery) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

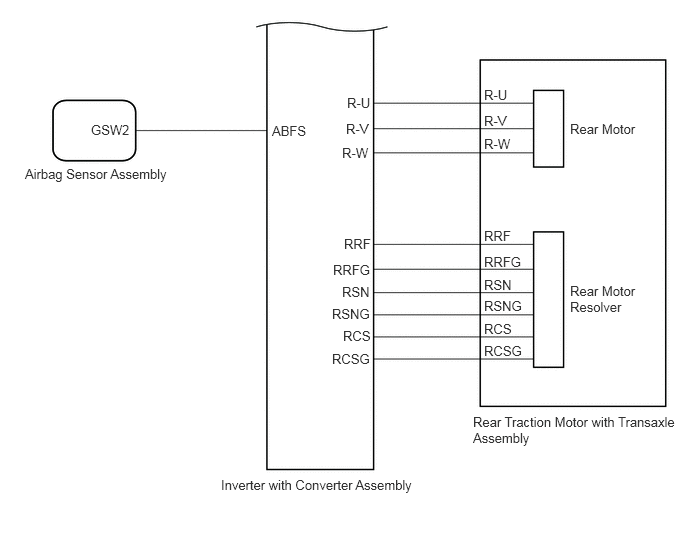

Fig 2: Motor Generator Control System Diagram (For Lithium-Ion Battery) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
