Microphone Circuit [01/2020 - 08/2020]: Wiring Diagram

WARNING: This page is about a different car, the 2022 Toyota RAV4, 2021 Toyota RAV4, 2020 Toyota RAV4, and 2019 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

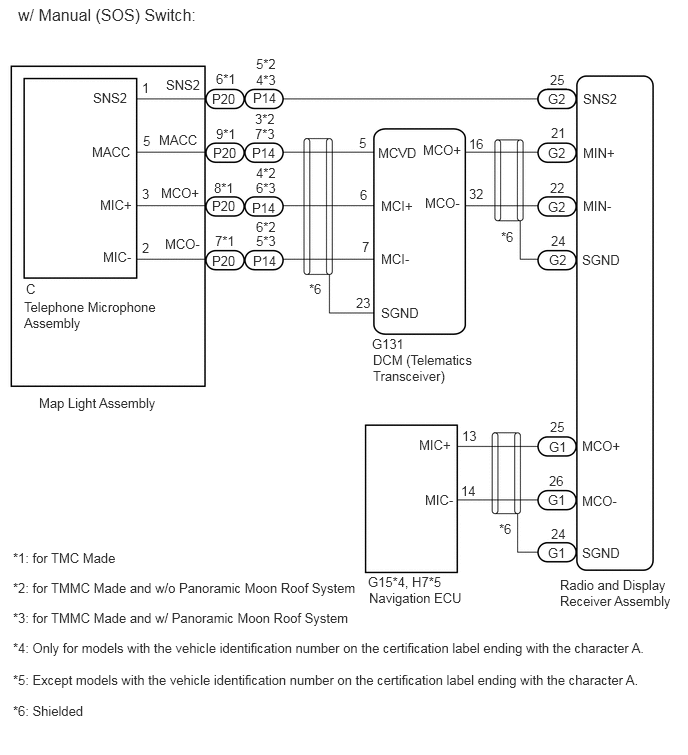

Fig 1: Microphone Circuit [01/2020 - 08/2020] (1 Of 2)
GTY885611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

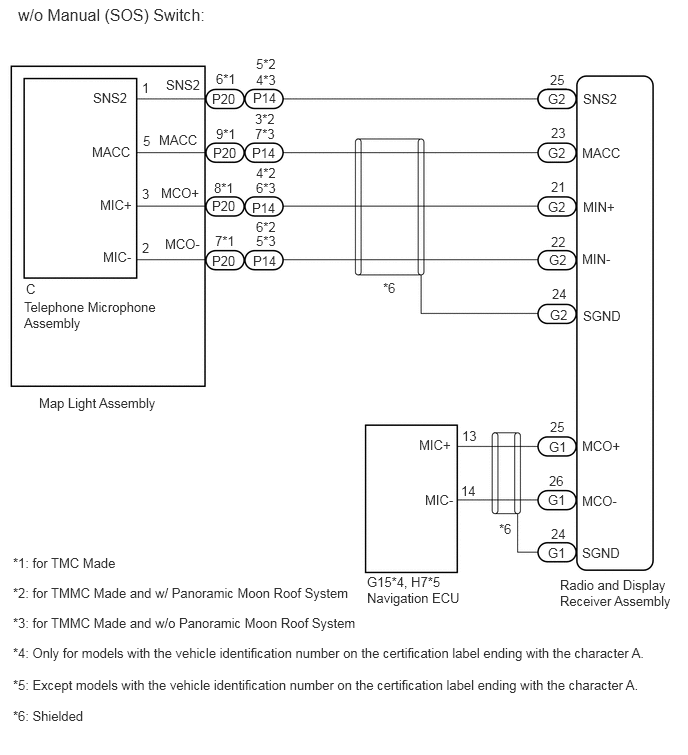

Fig 2: Microphone Circuit [01/2020 - 08/2020] (2 Of 2)
GTY902651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
