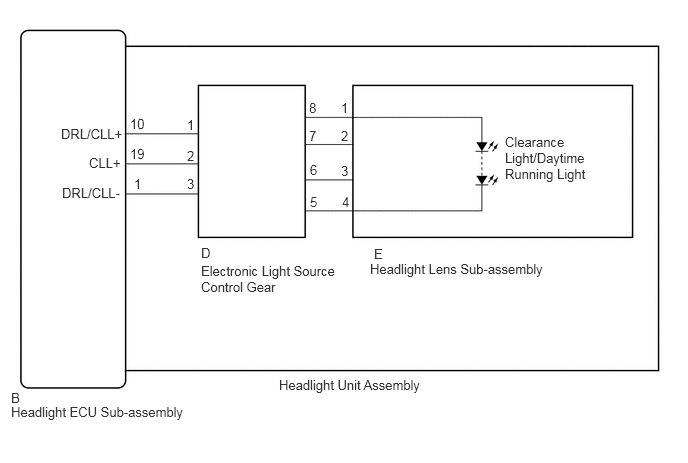

Clearance Light/Daytime Running Light Circuit [11/2018 - 08/2020]: Wiring Diagram

WARNING: This page is about a different car, the 2021 Toyota RAV4, 2020 Toyota RAV4, and 2019 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
