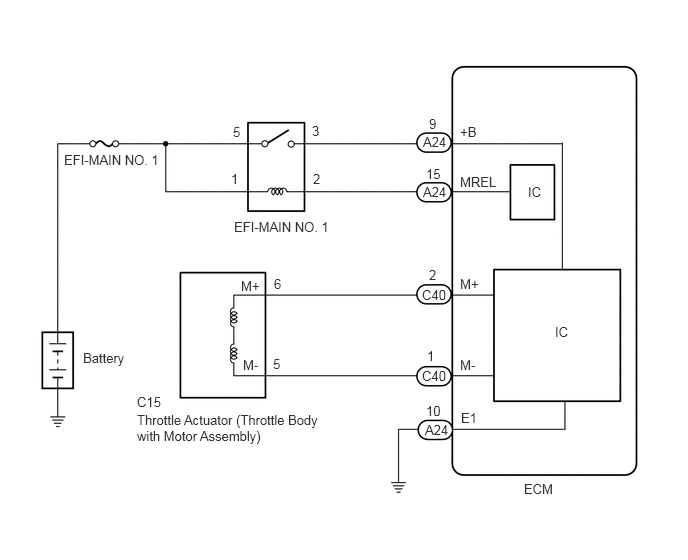

DTC P2100-18: Throttle Actuator "A" Control Motor Circuit Current Below Threshold; DTC P2100-19: Throttle Actuator "A" Control Motor Circuit Current Above Threshold [10/2019 - 08/2020]: Wiring Diagram

WARNING: This page is about a different car, the 2020 Toyota RAV4 and 2019 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
GTY842195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
