System Diagram [10/2019 - 08/2020]

WARNING: This page is about a different car, the 2022 Toyota RAV4, 2021 Toyota RAV4, 2020 Toyota RAV4, and 2019 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

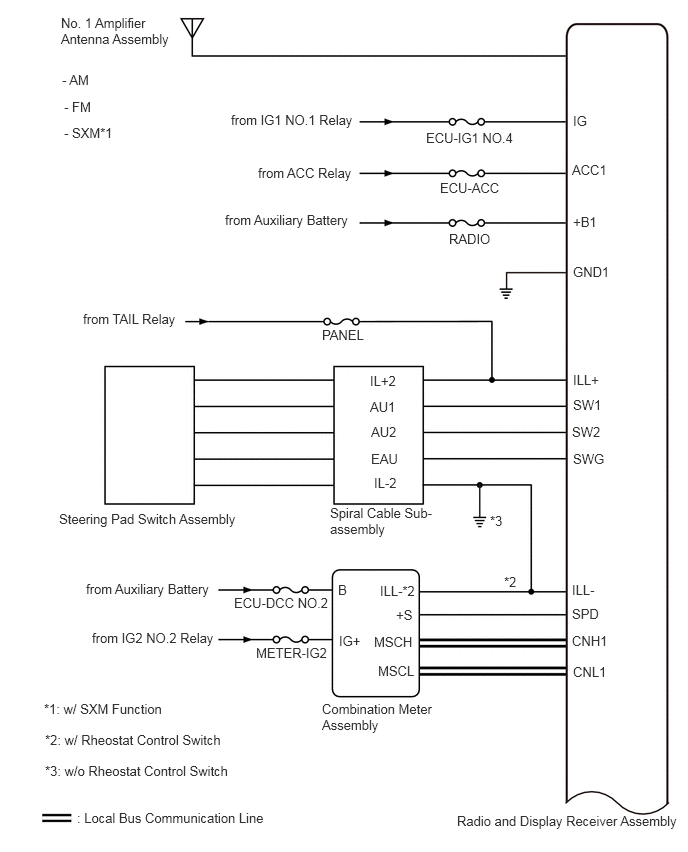

Fig 1: Navigation System Diagram (1 Of 10)
GTY861170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

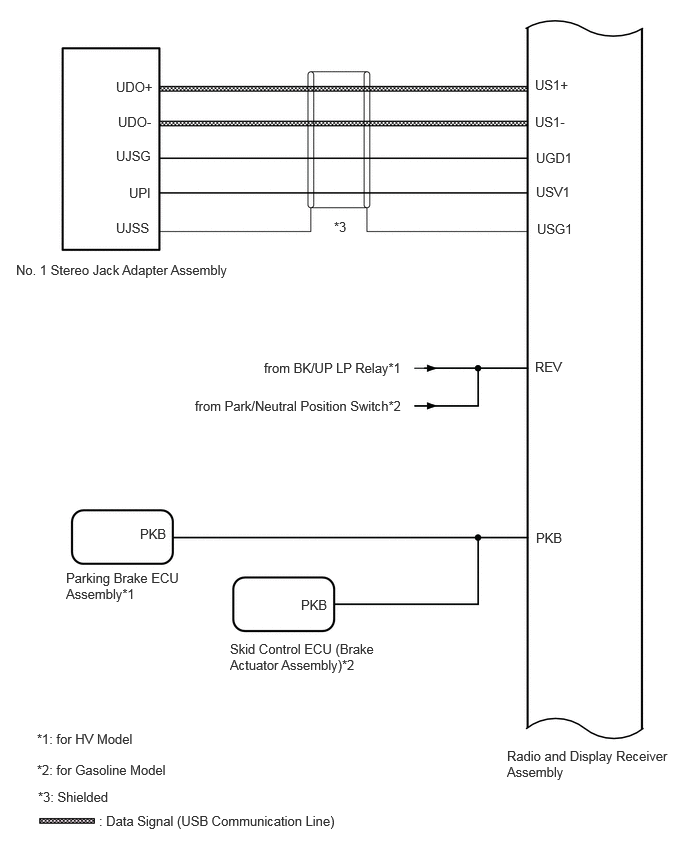

Fig 2: Navigation System Diagram (2 Of 10)
GTY876287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

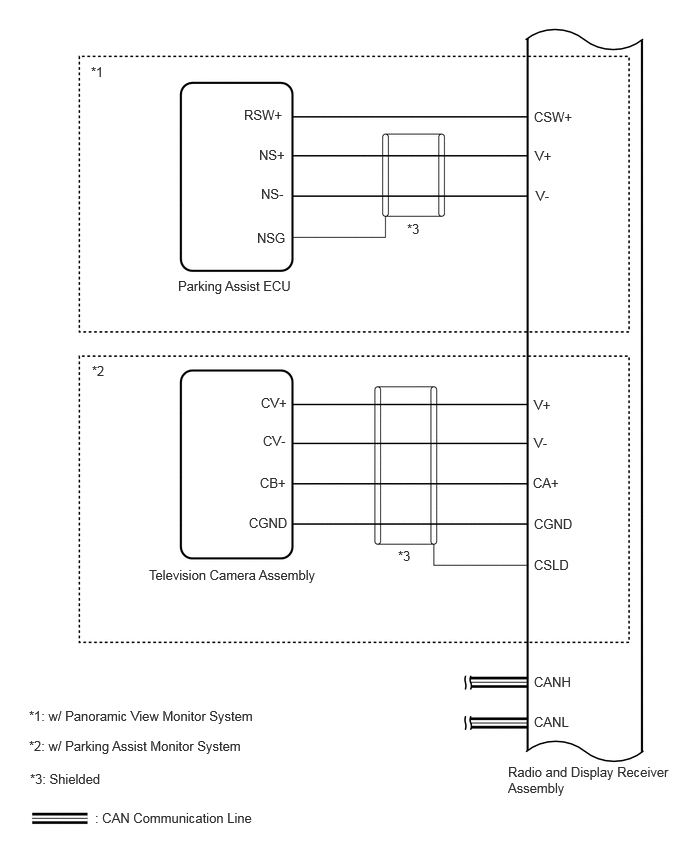

Fig 3: Navigation System Diagram (3 Of 10)
GTY870355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

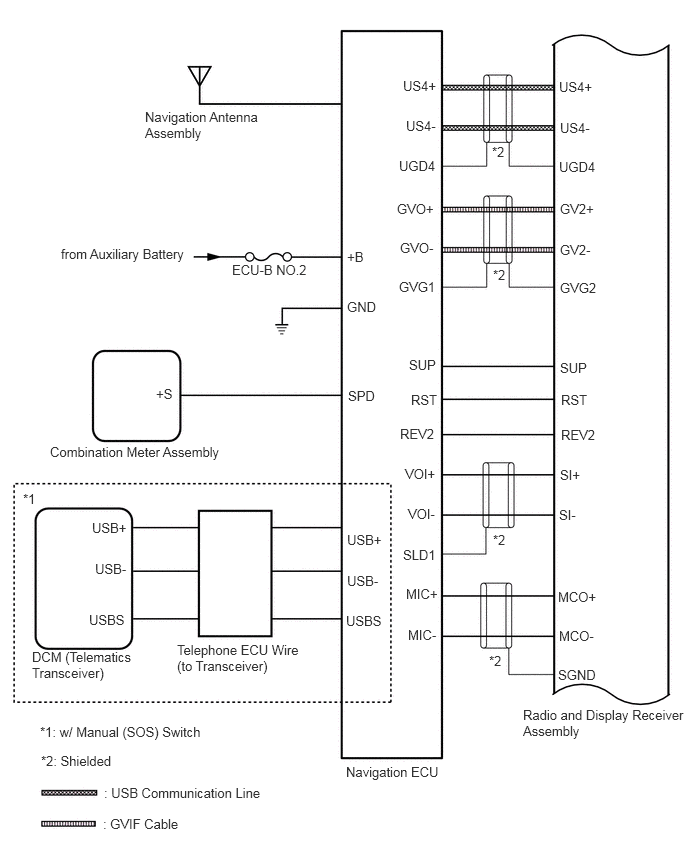

Fig 4: Navigation System Diagram (4 Of 10)
GTY907413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

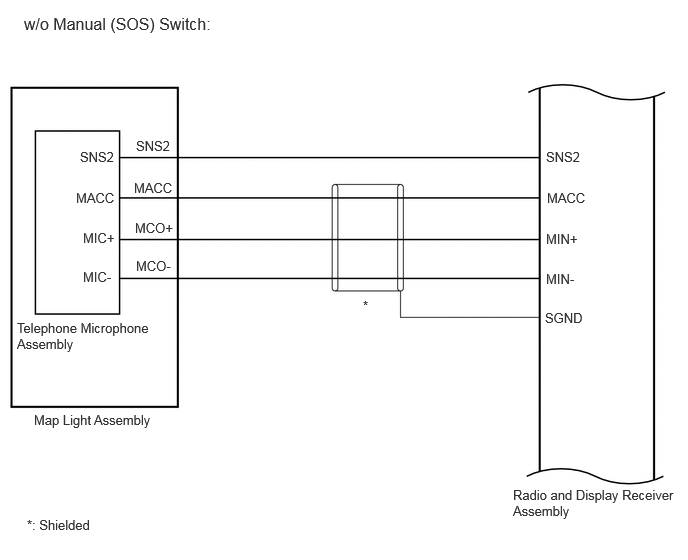

Fig 5: Navigation System Diagram (5 Of 10)
GTY882200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

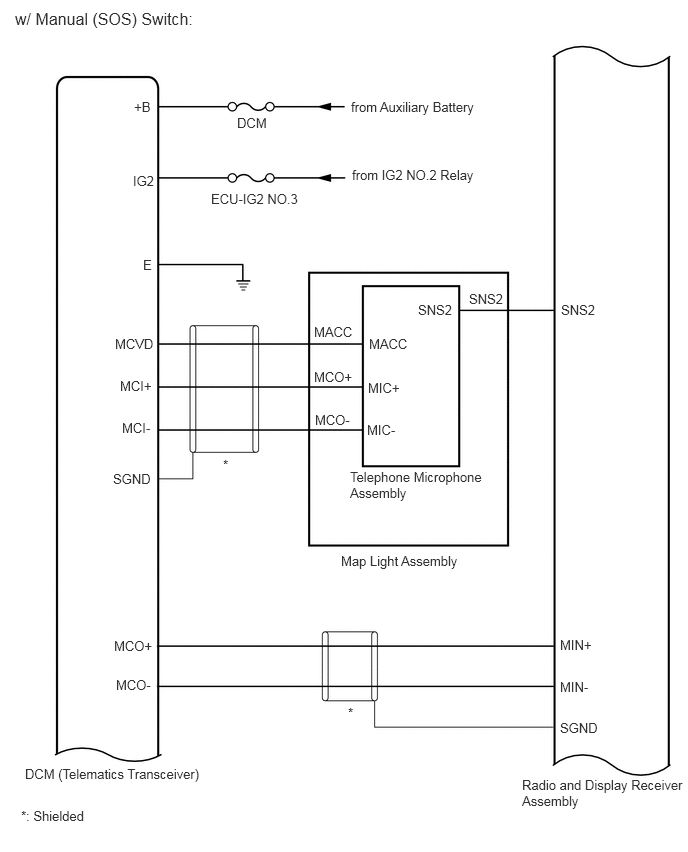

Fig 6: Navigation System Diagram (6 Of 10)
GTY877478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

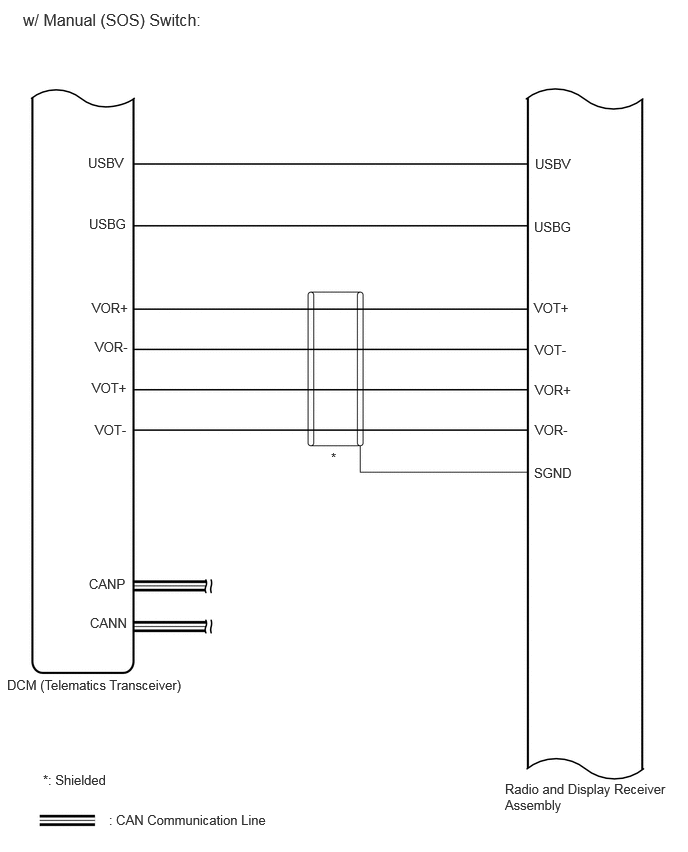

Fig 7: Navigation System Diagram (7 Of 10)
GTY860250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

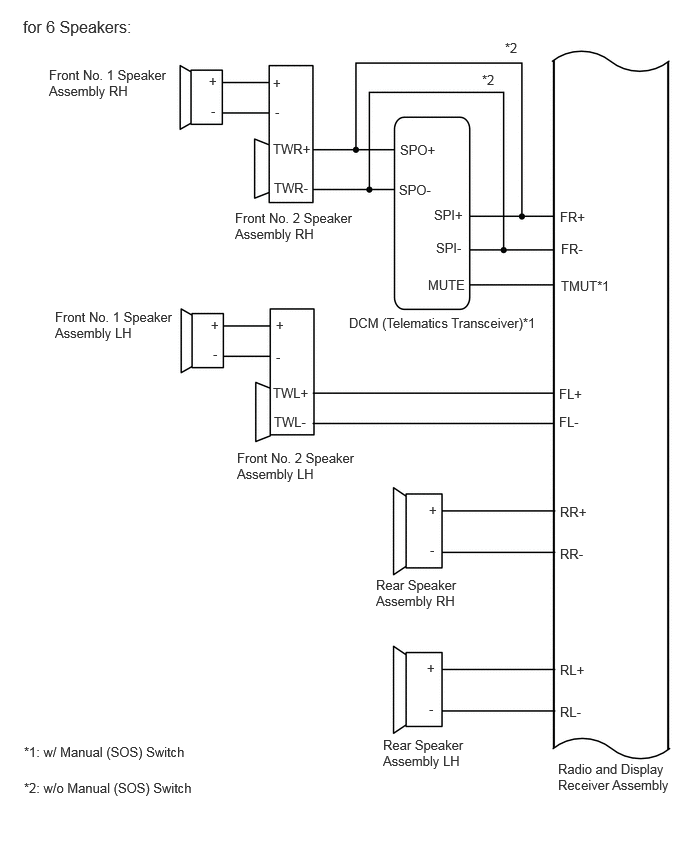

Fig 8: Navigation System Diagram (8 Of 10)
GTY912652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

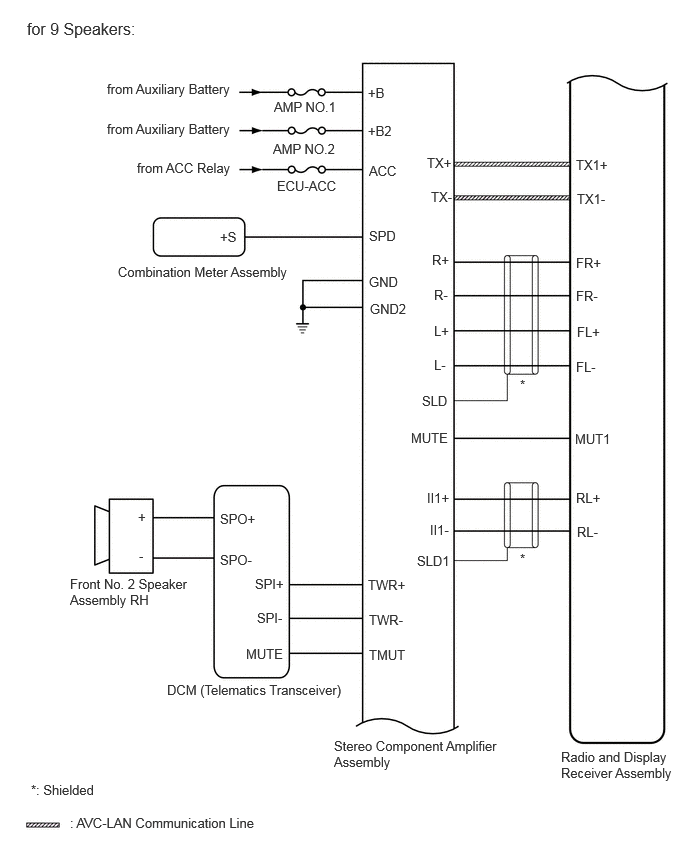

Fig 9: Navigation System Diagram (9 Of 10)
GTY917514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

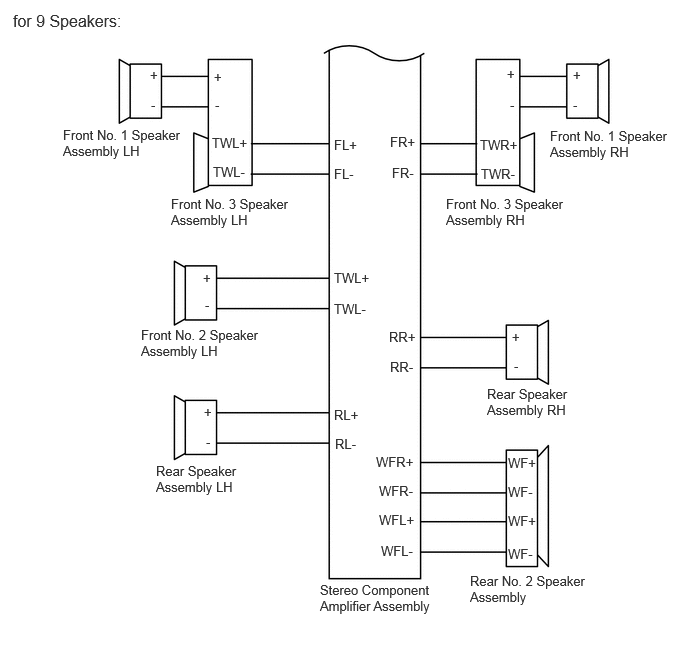

Fig 10: Navigation System Diagram (10 Of 10)
GTY926273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
