DTC B15CB-11: Telephone Main Antenna Circuit Short to Ground; DTC B15CB-13: Telephone Main Antenna Circuit Open [10/2022 - ]: Procedure

Pre-procedure1

1. Turn the ignition switch to ON and wait for 10 seconds.

   Procedure1

2. Clear the DTCs.

   Body Electrical > Telematics > Clear DTCs

   Result

   Proceed to
   NEXT

   Post-procedure1

3. None

Result:

NEXT

See step  2

1. Check for DTCs.

   Body Electrical > Telematics > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTCs are output	B

Result:

A

USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]

Result:

B

See step  3

Pre-procedure1

1. Remove the telephone and GPS antenna (roof antenna assembly).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Refer to REMOVAL [11/2018 - ]

   Procedure1

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition

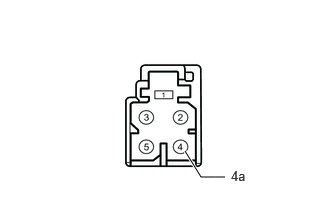

   4 - 4a	Always	9 to 11 kΩ

   Result

   Proceed to
   OK
   NG

   Post-procedure1

3. None

Result:

NG

REPLACE TELEPHONE AND GPS ANTENNA (ROOF ANTENNA ASSEMBLY). Refer to  REMOVAL [11/2018 - ]

Result:

OK

See step  4

Pre-procedure1

1. Disconnect the telephone and GPS antenna (roof antenna assembly) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

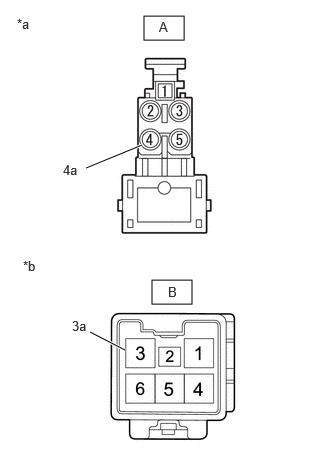

   *a	Front view of wire harness connector (to Telephone and GPS Antenna [Roof Antenna Assembly])
   *b	Front view of wire harness connector (to Telephone and GPS Antenna Cord [No. 3 Antenna Cord Sub-assembly])

2. Disconnect the telephone and GPS antenna cord (No. 3 antenna cord sub-assembly) connector.

   Procedure1

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A-4 - B-3	Always	Below 1 Ω
   A-4a - B-3a	Always	Below 1 Ω
   A-4 - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

   Post-procedure1

4. None

Result:

NG

REPLACE TELEPHONE AND GPS ANTENNA CORD [NO. 4 ANTENNA CORD SUB-ASSEMBLY]. Refer to  REMOVAL [11/2018 - ]

Result:

OK

See step  5

Pre-procedure1

1. Disconnect the telephone and GPS antenna cord (No. 4 antenna cord sub-assembly) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

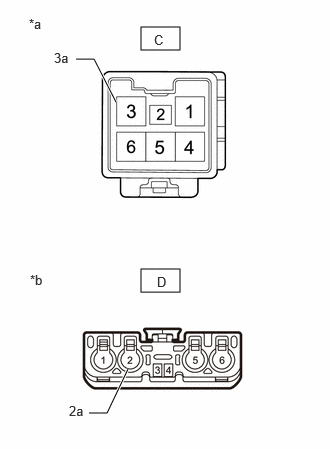

   *a	Front view of wire harness connector (to Telephone and GPS Antenna cord [No. 4 Antenna Cord Sub-assembly])
   *b	Front view of wire harness connector (to Telephone and GPS Antenna cord [Antenna Cord Sub-assembly])

2. Disconnect the telephone and GPS antenna cord (antenna cord sub-assembly) connector.

   Procedure1

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B-3 - C-3	Always	Below 1 Ω
   B-3a - C-3a	Always	Below 1 Ω
   B-3 or C-3 - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

   Post-procedure1

4. None

Result:

NG

REPLACE TELEPHONE AND GPS ANTENNA CORD [NO. 3 ANTENNA CORD SUB-ASSEMBLY]. Refer to  REMOVAL [11/2018 - ]

Result:

OK

See step  6

Pre-procedure1

1. Disconnect the telephone and GPS antenna cord (No. 3 antenna cord sub-assembly).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

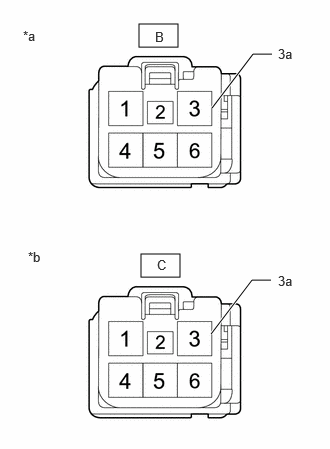

   *a	Front view of wire harness connector (to Telephone and GPS Antenna cord [No. 4 Antenna Cord Sub-assembly])
   *b	Front view of wire harness connector (to Telephone and GPS Antenna cord [No. 2 Antenna Cord Sub-assembly])

2. Disconnect the telephone and GPS antenna cord (No. 2 antenna cord sub-assembly).

   Procedure1

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C-3 - D-2	Always	Below 1 Ω
   C-3a - D-2a	Always	Below 1 Ω
   C-3 or D-2 - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

   Post-procedure1

4. None

Result:

NG

REPLACE TELEPHONE AND GPS ANTENNA CORD [ANTENNA CORD SUB-ASSEMBLY]. Refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]

Result:

OK

See step  7

Pre-procedure1

1. Disconnect the telephone and GPS antenna cord (antenna cord sub-assembly).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

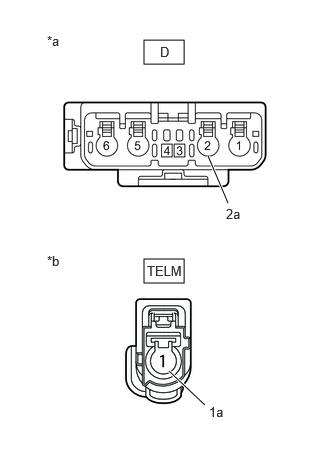

   *a	Front view of wire harness connector (to Telephone and GPS Antenna cord [Antenna Cord Sub-assembly])
   *b	Front view of wire harness connector (to DCM [Telematics Transceiver])

2. Disconnect the DCM (telematics transceiver).

   Procedure1

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D-2 - TELM-1 (ANT1)	Always	Below 1 Ω
   D-2a - TELM-1a	Always	Below 1 Ω
   D-2 - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

   Post-procedure1

4. None

Result:

NG

REPLACE TELEPHONE AND GPS ANTENNA CORD [NO. 2 ANTENNA CORD SUB-ASSEMBLY]. Refer to  REMOVAL [10/2022 - ]

Result:

OK

See step  8

Pre-procedure1

1. Replace the telephone and GPS antenna (roof antenna assembly) with a known good one.

   HINT:

   Refer to REMOVAL [11/2018 - ]

   Procedure1

2. Clear the DTCs.

   Body Electrical > Telematics > Clear DTCs

   Result

   Proceed to
   NEXT

   Post-procedure1

3. None

Result:

NEXT

See step  9

1. Recheck for DTCs and check that no DTCs are output.

   Body Electrical > Telematics > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTCs are output	B

Result:

A

END (TELEPHONE AND GPS ANTENNA [ROOF ANTENNA ASSEMBLY] IS DEFECTIVE)

Result:

B

See step  10

1. Replace the DCM (telematics transceiver).

   HINT:

   Refer to REMOVAL [10/2022 - ]

   NOTE:

   • The ignition switch must be off.
   • Do not exchange the DCM (telematics transceiver) with one from another vehicle.

   Result

   Proceed to
   NEXT

Result:

NEXT

PERFORM DCM ACTIVATION. Refer to  DCM ACTIVATION [10/2022 - ]
