Safety Connect System - Diagnostic Codes (2 Of 2), Circuit Tests & Symptom Tests
>>
Safety Connect System
>>
DTC B15CB-11: Telephone Main Antenna Circuit Short to Ground; DTC B15CB-13: Telephone Main Antenna Circuit Open [10/2019 - 10/2022]
>>

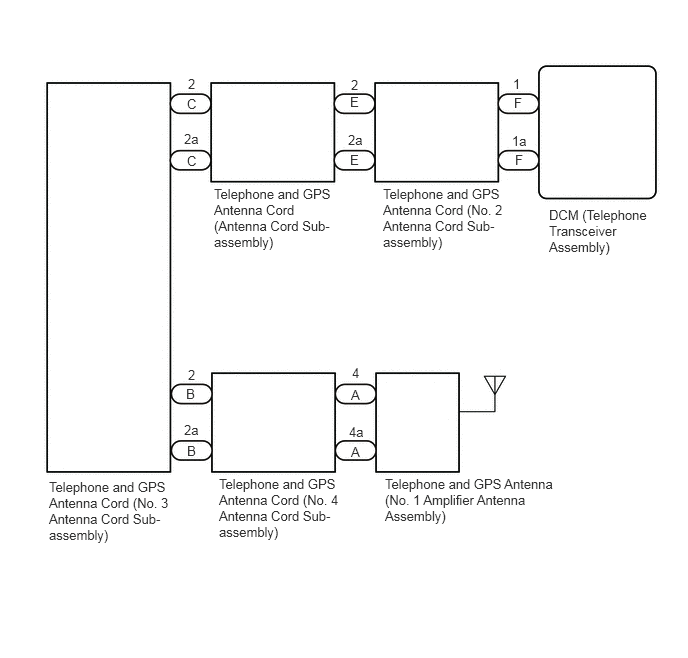

Wiring Diagram
DTC B15CB-11: Telephone Main Antenna Circuit Short to Ground; DTC B15CB-13: Telephone Main Antenna Circuit Open [10/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
