Safety Connect System - Diagnostic Codes (2 Of 2), Circuit Tests & Symptom Tests
>>
Safety Connect System
>>
DTC B15C5-11: Emergency Call Switch Circuit Short to Ground; DTC B15C5-13: Emergency Call Switch Circuit Open [10/2019 - 01/2020]
>>

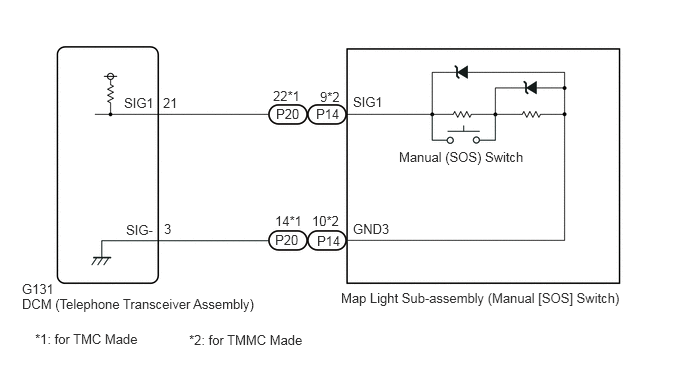

Wiring Diagram
DTC B15C5-11: Emergency Call Switch Circuit Short to Ground; DTC B15C5-13: Emergency Call Switch Circuit Open [10/2019 - 01/2020]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
