DTC B15C5-11: Emergency Call Switch Circuit Short to Ground; DTC B15C5-13: Emergency Call Switch Circuit Open [10/2019 - 01/2020]: Procedure

1. Turn the ignition switch off.
2. Connect the Techstream to the DLC3.
3. Turn the ignition switch to ON and wait for 10 seconds or more.
4. Turn the Techstream on.
5. Clear the DTCs.

   Refer to DTC CHECK / CLEAR [10/2019 - 10/2022]

   Body Electrical > Telematics > Clear DTCs

6. Check for DTCs and check that no DTCs are output.

   Refer to DTC CHECK / CLEAR [10/2019 - 10/2022]

   Body Electrical > Telematics > Trouble Codes

   OK

   No DTCs are output.

   Result

   Proceed to
   OK
   NG

Result:

OK

USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]

Result:

NG

See step  2

1. Remove the map light sub-assembly (manual [SOS] switch).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for TMC Made
   *B	for TMMC Made

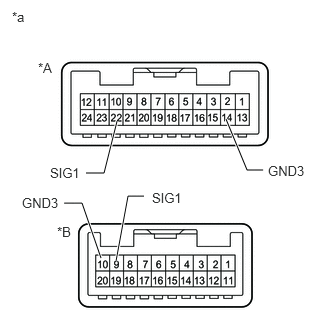

   *a	Component without harness connected (Map Light Sub-assembly (Manual [SOS] Switch))

   Refer to REMOVAL [11/2018 - ]

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   FOR TMC MADE



   Tester Connection	Condition	Specified Condition
   22 (SIG1) - 14 (GND3)	Manual (SOS) switch not operated	410 to 414 Ω
   22 (SIG1) - 14 (GND3)	Manual (SOS) switch operated	81 to 83 Ω

   FOR TMMC MADE



   Tester Connection	Condition	Specified Condition
   9 (SIG1) - 10 (GND3)	Manual (SOS) switch not operated	410 to 414 Ω
   9 (SIG1) - 10 (GND3)	Manual (SOS) switch operated	81 to 83 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE MAP LIGHT SUB-ASSEMBLY (MANUAL [SOS] SWITCH). Refer to  REMOVAL [11/2018 - ]

Result:

OK

See step  3

1. Disconnect the G131 DCM (telephone transceiver assembly) connector.
2. Disconnect the P20*1 or P14*2 map light sub-assembly (manual [SOS] switch) connector.
   1. *1: for TMC Made
   2. *2: for TMMC Made
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   FOR TMC MADE



   Tester Connection	Condition	Specified Condition
   G131-21 (SIG1) - P20-22 (SIG1)	Always	Below 1 Ω
   G131-3 (SIG-) - P20-14 (GND3)	Always	Below 1 Ω
   G131-21 (SIG1) or P20-22 (SIG1) - Body ground	Always	10 kΩ or higher
   G131-3 (SIG-) or P20-14 (GND3) - Body ground	Always	10 kΩ or higher

   FOR TMMC MADE



   Tester Connection	Condition	Specified Condition
   G131-21 (SIG1) - P14-9 (SIG1)	Always	Below 1 Ω
   G131-3 (SIG-) - P14-10 (GND3)	Always	Below 1 Ω
   G131-21 (SIG1) or P14-9 (SIG1) - Body ground	Always	10 kΩ or higher
   G131-3 (SIG-) or P14-10 (GND3) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Replace the DCM (telephone transceiver assembly) with a new one.

   Refer to REMOVAL [10/2019 - 10/2022]

   NOTE:

   • The ignition switch must be off.
   • Do not exchange the DCM (telephone transceiver assembly) with one from another vehicle.

   Result

   Proceed to
   NEXT

Result:

NEXT

PERFORM DCM ACTIVATION. Refer to  REMOVAL [10/2019 - 10/2022]
