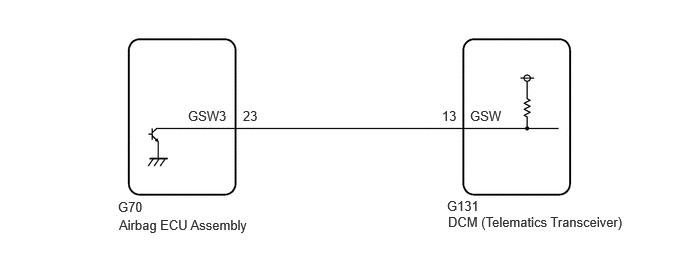

DTC B15C4-64: Airbag Signal Signal Plausibility Failure [10/2022 - ]: Wiring Diagram

GTY1117178

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
