DTC B15C4-64: Airbag Signal Signal Plausibility Failure [10/2022 - ]: Procedure

  1. CHECK DTC (AIRBAG SYSTEM)

    Pre-procedure1

    1. Turn the ignition switch to ON and wait for 10 seconds.

      Procedure1

    2. Check the DTC of "AIRBAG SYSTEM".

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result Proceed to
      DTCs are not output A
      DTCs are output B

      Post-procedure1

    3. None

    Result:

    B

    GO TO AIRBAG SYSTEM. Refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2020 - ]

    Result:

    A

    See step  2

  2. CLEAR DTC

    Pre-procedure1

    1. Turn the ignition switch to ON and wait for 10 seconds or more.

      Procedure1

    2. Clear the DTCs.

      Body Electrical > Telematics > Clear DTCs

      Result

      Proceed to
      NEXT

      Post-procedure1

    3. None

    Result:

    NEXT

    See step  3

  3. CHECK FOR DTC
    1. Check for DTCs.

      Body Electrical > Telematics > Trouble Codes

      Result

      Result Proceed to
      B15C4-64 is not output A
      B15C4-64 is output B

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]

    Result:

    B

    See step  4

  4. CHECK DCM (TELEMATICS TRANSCEIVER) (GSW SIGNAL)

    Pre-procedure1

    1. Remove the DCM (telematics transceiver) but do not disconnect the connectors.

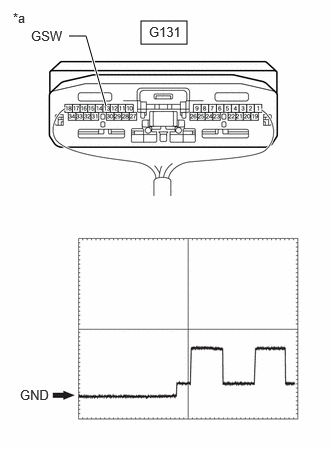

      GTY1121032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (DCM [Telematics Transceiver])

      HINT:

      Refer to REMOVAL [10/2022 - ]

      Procedure1

    2. Check the input waveform.
      1. Check the signal waveform according to the condition(s) in the table below. (Check the waveform from the back of the wire harness connector of the DCM (telematics transceiver) while the airbag ECU assembly connectors are connected.)

        Reference Waveform

        Item Condition
        Tester connection G131-13 (GSW) - Body ground
        Tool setting 5.0 V/DIV., 20 ms/DIV.
        Vehicle condition Ignition switch ON

        OK

        The waveform is similar to that shown in the illustration.

        Result

        Proceed to
        OK
        NG

      Post-procedure1

    3. None

    Result:

    NG

    See step  6

    Result:

    OK

    See step  5

  5. REPLACE DCM (TELEMATICS TRANSCEIVER)
    1. Replace the DCM (telematics transceiver).

      HINT:

      Refer to REMOVAL [10/2022 - ]

      NOTE:
      • The ignition switch must be off.
      • Do not exchange the DCM (telematics transceiver) with one from another vehicle.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    PERFORM DCM ACTIVATION. Refer to  DCM ACTIVATION [10/2022 - ]

  6. CHECK HARNESS AND CONNECTOR (DCM [TELEMATICS TRANSCEIVER] - AIRBAG ECU ASSEMBLY)

    Pre-procedure1

    1. Disconnect the G131 DCM (telematics transceiver) connector.
    2. Disconnect the G70 airbag ECU assembly connector.

      Procedure1

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G131-13 (GSW) - G70-23 (GSW3) Always Below 1 Ω
      G131-13 (GSW) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. None

    Result:

    OK

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
