DTC B15C4-64: Airbag Signal Signal Plausibility Failure [10/2019 - 10/2022]: Procedure
- CHECK DTC (AIRBAG SYSTEM)
- Turn the ignition switch off.
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON and wait for 10 seconds or more.
- Turn the Techstream on.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [11/2018 - 08/2020] , or refer to DTC CHECK / CLEAR [08/2020 - ]
- Check for DTCs and check that no DTCs are output.
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
NG
GO TO AIRBAG SYSTEM. Refer to DIAGNOSTIC TROUBLE CODE CHART [02/2019 - 08/2020] , or refer to DIAGNOSTIC TROUBLE CODE CHART [08/2020 - ]
Result:
OK
See step 2
- CHECK DTC
- Turn the ignition switch off.
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON and wait for 10 seconds or more.
- Turn the Techstream on.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [10/2019 - 10/2022]
Body Electrical > Telematics > Clear DTCs
- Check for DTCs and check that no DTCs are output.
Refer to DTC CHECK / CLEAR [10/2019 - 10/2022]
Body Electrical > Telematics > Trouble Codes
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]
Result:
NG
See step 3
- CHECK DCM (TELEPHONE TRANSCEIVER ASSEMBLY) (GSW SIGNAL)
- Remove the DCM (telephone transceiver assembly) but do not disconnect the connectors.
*a Component with harness connected
(DCM [Telephone Transceiver Assembly])Refer to REMOVAL [10/2019 - 10/2022]
- Check the input waveform.
- Check the signal waveform according to the condition(s) in the table below. (Check the waveform from the back of the wire harness connector of the DCM (telephone transceiver assembly) while the airbag ECU assembly connectors are connected.)

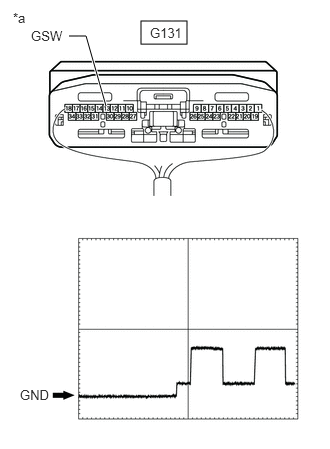

Reference Waveform
Item Condition Tester connection G131-13 (GSW) - Body ground Tool setting 5.0 V/DIV., 20 ms/DIV. Vehicle condition Ignition switch ON OK
The waveform is similar to that shown in the illustration.
Result
Proceed to OK NG - Check the signal waveform according to the condition(s) in the table below. (Check the waveform from the back of the wire harness connector of the DCM (telephone transceiver assembly) while the airbag ECU assembly connectors are connected.)
Result:
NG
See step 5
Result:
OK
See step 4
- Remove the DCM (telephone transceiver assembly) but do not disconnect the connectors.
- REPLACE DCM (TELEPHONE TRANSCEIVER ASSEMBLY)
- Replace the DCM (telephone transceiver assembly) with a new one.
Refer to REMOVAL [10/2019 - 10/2022]
NOTE:- The ignition switch must be off.
- Do not exchange the DCM (telephone transceiver assembly) with one from another vehicle.
Result
Proceed to NEXT
Result:
NEXT
PERFORM DCM ACTIVATION. Refer to DCM ACTIVATION [10/2019 - 10/2022]
- Replace the DCM (telephone transceiver assembly) with a new one.
- CHECK HARNESS AND CONNECTOR (DCM [TELEPHONE TRANSCEIVER ASSEMBLY] - AIRBAG ECU ASSEMBLY)
- Disconnect the G131 DCM (telephone transceiver assembly) connector.
- Disconnect the G70 airbag ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G131-13 (GSW) - G70-23 (GSW3) Always Below 1 Ω G131-13 (GSW) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE AIRBAG ECU ASSEMBLY. Refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022]
Result:
NG
REPLACE HARNESS OR CONNECTOR
