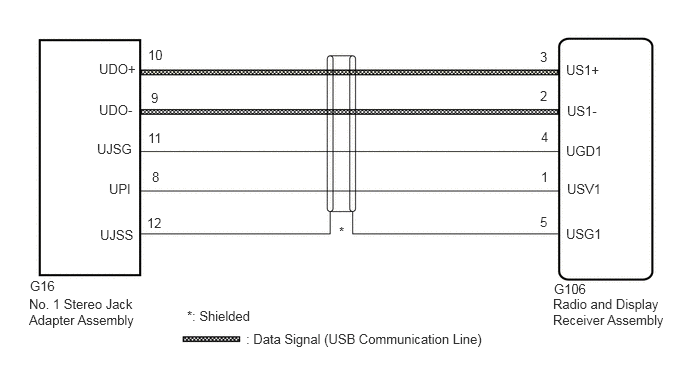

USB Audio System Recognition/Play Error [11/2018 - 10/2019]: Wiring Diagram

GTY927241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
