HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
COMPONENTS (INSTALLATION)
Fig 1: Rear Trailing Arm Installation Components With Torque Specifications [12/2022 - 03/2023] (1 Of 3)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR SUSPENSION ARM BRACKET | 48727 | See step 1 | - | - |
| 2 | REAR SUSPENSION ARM COVER | 48738 | - | - | - |
| *1 | REAR TRAILING ARM ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
Fig 2: Rear Trailing Arm Installation Components With Torque Specifications [12/2022 - 03/2023] (2 Of 3)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 3 | REAR TRAILING ARM ASSEMBLY | 48780E | See step 3 | - | - |
| 4 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | 890C0A | - | - | - |
| 5 | REAR STABILIZER LINK ASSEMBLY | 48840A | - | - | - |
| 6 | REAR WHEEL | - | - | - | - |
| *A | w/ Stabilizer Bar | *B | w/o Stabilizer Bar |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

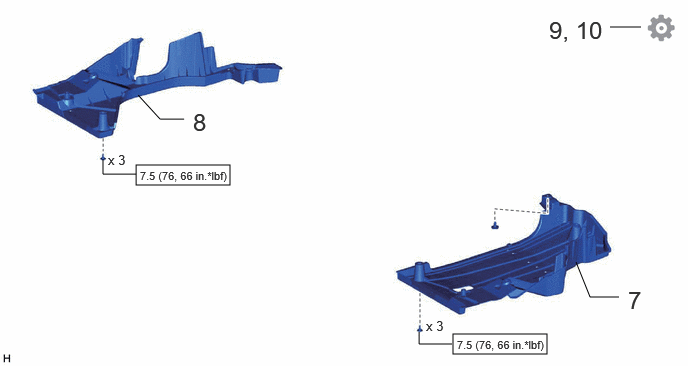

Fig 3: Rear Trailing Arm Installation Components With Torque Specifications [12/2022 - 03/2023] (3 Of 3)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 7 | REAR FLOOR SIDE MEMBER COVER LH | 57628E | - | - | - |
| 8 | REAR FLOOR SIDE MEMBER COVER RH | 57627G | - | - | - |
| 9 | INSPECT AND ADJUST REAR WHEEL ALIGNMENT | - | - | - | See step 9 |
| 10 | PERFORM INITIALIZATION | - | - | - | See step 10 |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
