DTC B00D5-14: Restraint System Passenger Disable Indicator Circuit Short to Ground or Open [12/2022 - ]: Procedure

  1. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CONDITION

    Pre-procedure1

    • Turn the ignition switch to ON.
    • Check the passenger airbag ON/OFF indicator operation.

      HINT:

      Refer to the normal condition of the passenger airbag ON/OFF indicator.

      Refer to OPERATION CHECK [12/2022 - ]

      Result

      Result Proceed to
      Passenger airbag ON/OFF indicator "OFF" is always on. A
      Passenger airbag ON/OFF indicator "OFF" is always off. B

    Post-procedure1

    • None

    Result:

    B

    See step  6

    Result:

    A

    See step  2

  2. CHECK CONNECTION OF CONNECTORS

    Pre-procedure1

    • Turn the ignition switch off.
    • Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    • Check that the connectors are properly connected to the airbag ECU assembly and map light assembly.

      OK

      The connectors are properly connected.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  3

  3. CHECK CONNECTORS

    Pre-procedure1

    • Disconnect the airbag ECU assembly connector.
      GTY1018544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag ECU Assembly
      *3 Wire Harness
    • Disconnect the map light assembly connector.
    • Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      K1-34 (P-AB) or U1-19 (P-AB) - Body ground Always 1 MΩ or higher MΩ

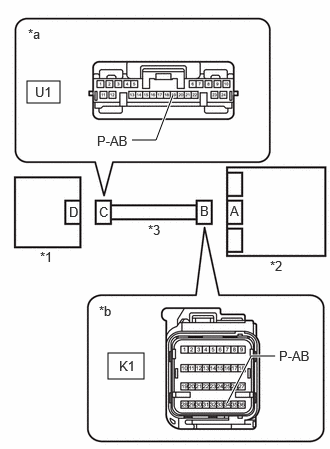

      GTY1159268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag ECU Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Map Light Assembly)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK PASSENGER AIRBAG ON/OFF INDICATOR

    Pre-procedure1

    • Connect the map light assembly connector.
      GTY973870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag ECU Assembly
      *3 Wire Harness
    • Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    • Turn the ignition switch to ON.
    • Check the passenger airbag ON/OFF indicator operation.

      OK

      The passenger airbag ON/OFF indicator "OFF" does not come on.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    OK

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [12/2022 - 03/2023]  , or refer to  REMOVAL [03/2023 - ]

    Result:

    NG

    REPLACE MAP LIGHT ASSEMBLY. Refer to  REMOVAL [12/2022 - ]

  6. CHECK CONNECTION OF CONNECTORS

    Pre-procedure1

    • Turn the ignition switch off.
    • Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    • Check that the connectors are properly connected to the airbag ECU assembly and map light assembly.

      OK

      The connectors are properly connected.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  7

  7. CHECK CONNECTORS

    Pre-procedure1

    • Disconnect the airbag ECU assembly connector.
      GTY1018544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag ECU Assembly
      *3 Wire Harness
    • Disconnect the map light assembly connector.
    • Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1159268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag ECU Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Map Light Assembly)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      K1-34 (P-AB) - U1-19 (P-AB) Always Below 1 Ω Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE)

    Pre-procedure1

    • Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    • Turn the ignition switch to ON.
    • Measure the voltage according to the value(s) in the table below.
      GTY1146186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Map Light Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition Result
      U1-3 (IG) - Body ground Ignition switch ON 11 to 14 V V

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Turn the ignition switch off.
    • Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. CHECK PASSENGER AIRBAG ON/OFF INDICATOR

    Pre-procedure1

    • Connect the map light assembly connector.
      GTY1140535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag ECU Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Airbag ECU Assembly)
    • Using a service wire, connect terminal 34 (P-AB) of connector B and body ground.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    • Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    • Turn the ignition switch to ON.
    • Check the passenger airbag ON/OFF indicator operation.

      OK

      The passenger airbag ON/OFF indicator "OFF" come on.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Turn the ignition switch off.
    • Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    • Disconnect the service wire from connector B.

    Result:

    OK

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [12/2022 - 03/2023]  , or refer to  REMOVAL [03/2023 - ]

    Result:

    NG

    REPLACE MAP LIGHT ASSEMBLY. Refer to  REMOVAL [12/2022 - ]
