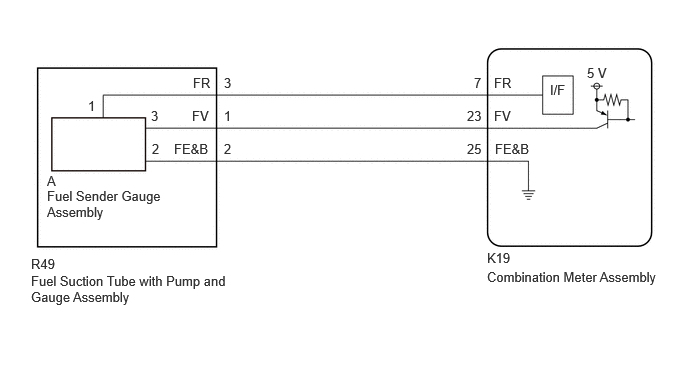

DTC B1500-13: Fuel Sender Circuit Open [03/2023 - ]: Wiring Diagram

GTY1143248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
